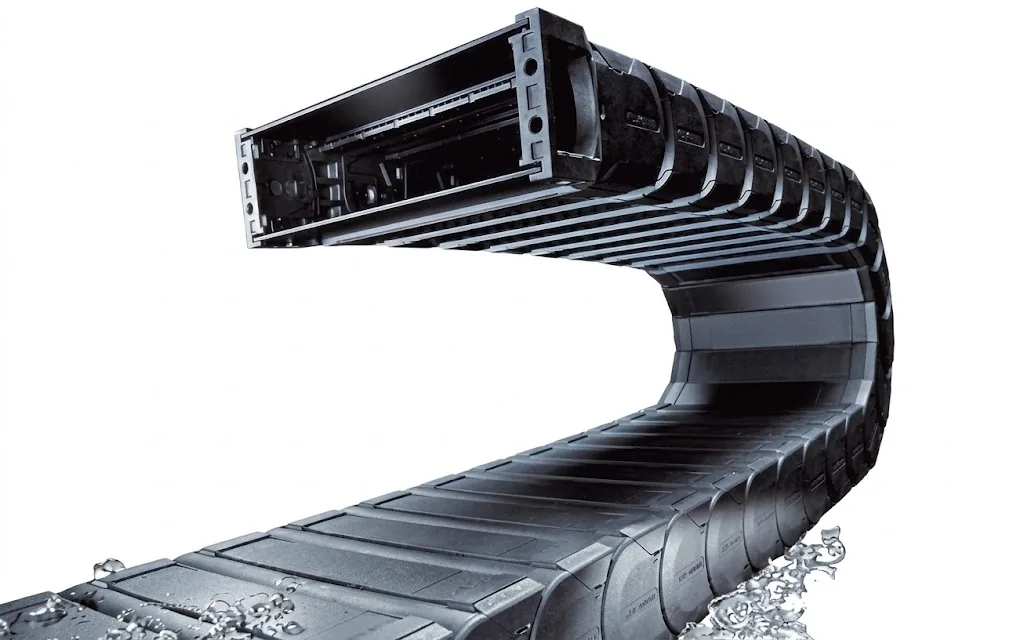

TKA Series cable carrier
Enclosed cable carriers, plastic · Plastic · Closed
Fully sealed cable carrier that reliably keeps swarf, dust and dirt out right to the end.
- Inner height
- 20,5–45,5 mm
- Inner width
- 15–250 mm
- Bending radius
- 55–300 mm
- Travel length
- up to 150 m
- Pitch
- 30,5–55,5 mm
Types
4 types in the TKA Series
Click a type for all dimensions, performance and options. Every type can be assembled to size, complete with cables.
| Type | Inner height | Inner width | Pitch | Bending radii | Max. cable Ø | Travel length, gliding | Version | |
|---|---|---|---|---|---|---|---|---|
 | TKA30 | Inner height20.5 mm | Inner width15–65 mm | Pitch30.5 mm | Bending radii55–180 mm· 6 | Max. cable Ø16 mm | Travel length, gliding80 m | VersionClosed |
 | TKA38 | Inner height26 mm | Inner width25–130 mm | Pitch38.5 mm | Bending radii70–230 mm· 7 | Max. cable Ø20 mm | Travel length, gliding120 m | VersionClosed |
 | TKA45 | Inner height36 mm | Inner width50–150 mm | Pitch45.5 mm | Bending radii82–230 mm· 7 | Max. cable Ø28.5 mm | Travel length, gliding120 m | VersionClosed |
 | TKA55 | Inner height45 mm | Inner width50–250 mm | Pitch55.5 mm | Bending radii100–300 mm· 8 | Max. cable Ø36 mm | Travel length, gliding150 m | VersionClosed |
About the series
About the TKA Series
The TKA is a fully sealed plastic cable carrier that keeps out swarf, dust and dirt. The closed construction is wear resistant and stable, which extends cable life in contaminated environments. Applications include CNC machining centres, metal and wood processing, production lines, automation and industrial machinery.
- Chip-tight and dust-tight design
- Wear-resistant, enclosed construction
- High stability
- Optimum protection in polluted environments
- Longer cable service life
- Suitable for intensive duty
Widely used in
- Types
- The TKA comes in 4 types: TKA30, TKA38, TKA45, TKA55.
- Sizes
- The inner height ranges from 20.5 to 45.5 mm, the inner width from 15 to 250 mm. All types are available in fixed inner widths.
- Bending radius
- The bending radius ranges from 55 to 300 mm.
- Pitch
- The pitch is 30.5 to 55.5 mm.
- Cables
- The largest type takes cables up to 36 mm in diameter.
- Travel length
- The travel length is up to 150 m, depending on type, additional load and installation.
- Open
- The links can be opened on the inside and the outside.
- Environment
- According to the type data, the series is suitable for indoor use, in contaminated environments, with swarf.
Wisman Techniek in Ruurlo is the exclusive dealer of Tsubaki Kabelschlepp in the Netherlands. Popular TKA types are in stock; we assemble other versions to order, cut to length and, if required, complete with cables and hoses.
the cable carrier configurator · free of charge
The right type in 3 minutes
- 01Fill in cables and hoses
- 02Travel length and speed
- 03Specialist checks
No account needed
Replace
Are you replacing an existing carrier?
Send a photo of the carrier or the type plate. We will find the right type and the parts to go with it.
Parts
Parts or repair
Links, crossbars and end brackets for the TKA Series. From stock or ordered quickly.
