System sleeving.A zip around your cable bundle.

A sleeve that you wrap around a bundle of cables and zip shut. The cables stay connected. Three sleeves and three closures: 414 part numbers from the Reiku catalogue.

Which one do I need? Sizes and article numbers

Three jackets

Nominal size and temperature

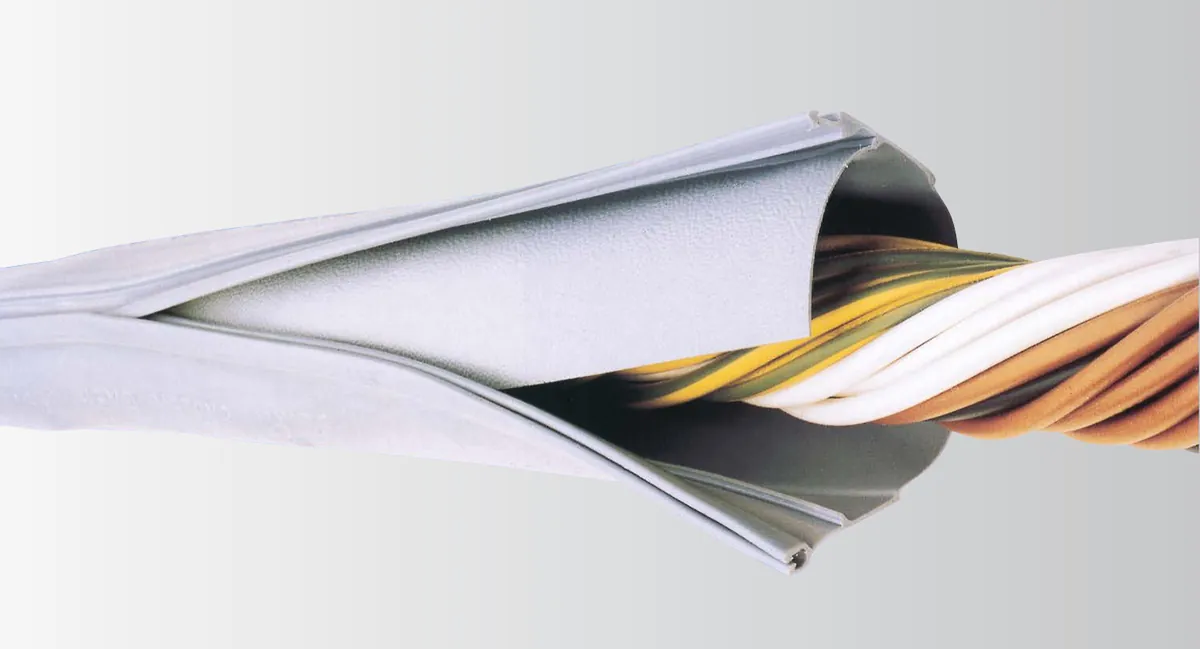

  • Systeemommanteling BEKUM
    BEKUMSoft PVC9–120 mm−30 to +80 °C

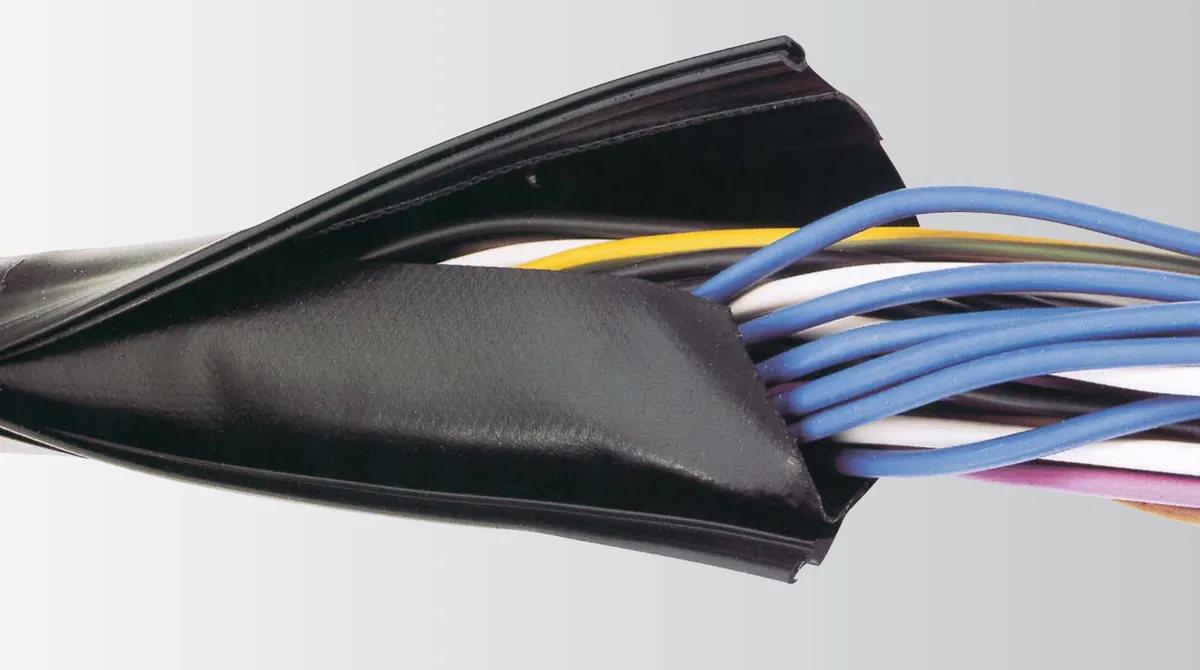

  • Systeemommanteling BENYL
    BENYLPolyester fabric9–120 mm−20 to +75 °C
  • Systeemommanteling B2X / B4X
    B2X / B4XShielded, 2 or 4 layers of copper20–120 mm−20 tot +80 °C

Closure of your choice: Z (standard), M or G (hook and loop).

Jackets

Three jackets, three closures

Choose the jacket for the environment, shielding only if the bundle contains cables sensitive to interference. Every closure fits every series.

BEKUM system sleeving around a cable bundle

Soft PVC

BEKUM

Soepel en zelfdovend. −30 tot +80 °C.

  • Suits most machines and control cabinets
  • Resistant to most acids, oils and alkalis
  • Wand 0,5 mm, zwart of grijs
No shield9–120 mm2 layers20–120 mm4 layers20–120 mm
BENYL system sleeving around a cable bundle

Polyester fabric

BENYL

Slijtvast en moeilijk brandbaar. −20 tot +75 °C.

  • For heavy and aggressive environments
  • Vinyl coated on both sides
  • Wand 0,6 mm, zwart
No shield9–120 mm2 layers20–120 mm4 layers20–120 mm

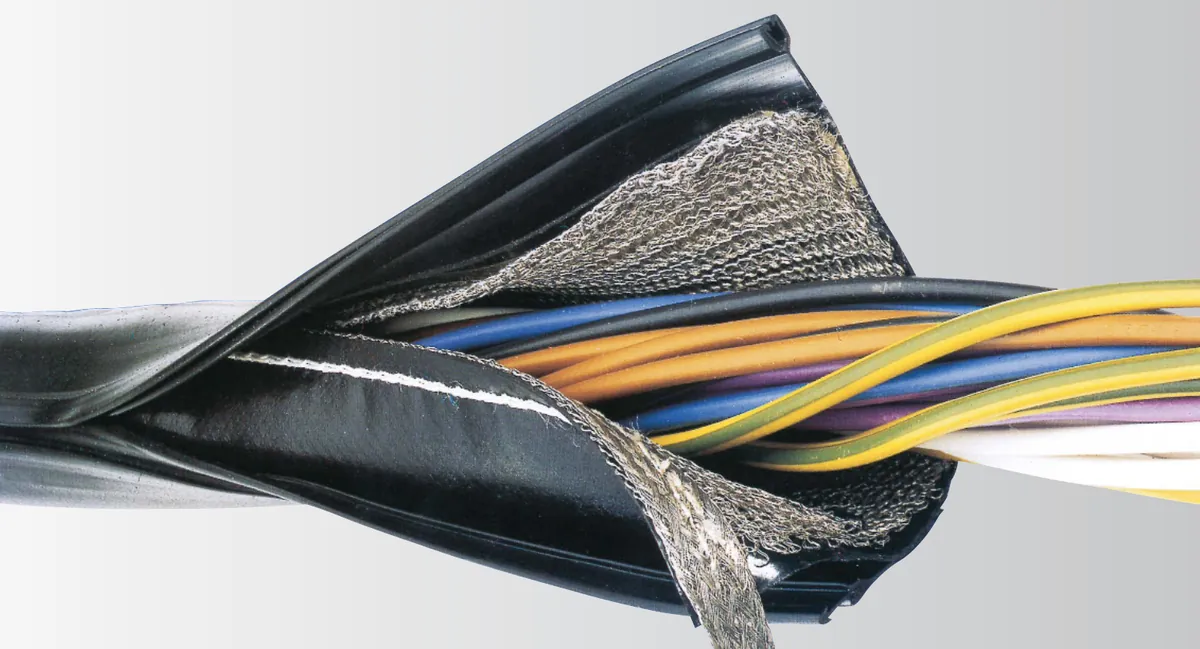

Systeemommanteling B2X / B4X om een kabelbundel

Shielded

B2X / B4X

The same jacket with a copper wire braid underneath, in 2 or 4 layers.

  • Keeps high-frequency interference out
  • Shielding more than 360° after closing
  • With tinned copper earth braid
2 layers20–120 mm4 layers20–120 mm

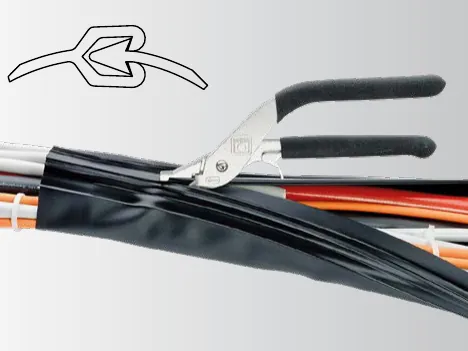

  • Z closure with cross-section of the profile
    Z closurestandardClose with: Light hand tool (Z pliers)

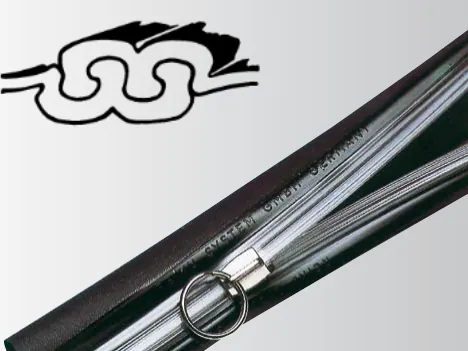

  • M closure with cross-section of the profile
    M closureClose with: Large M slider or press closed with your fingers
  • G closure with profile cross-section
    G closureClose with: By hand (hook-and-loop strap)

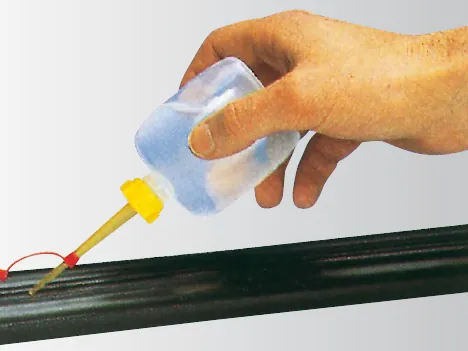

  • RSQ adhesive is applied in the closure of the sleeving
    RSQ adhesiveZ and M permanently closed after 12 hours. Request
All technical data per series
BEKUMBENYLB2X-BEKUMB4X-BEKUMB2X-BENYLB4X-BENYL
Article numberSKB* / SKG*ZNB*2KB* / 2KG*4KB* / 4KG*2NB*4NB*
Base materialHigh-quality soft PVCPolyester fabric, vinyl coated on both sidesTwo-layer copper fine-wire braid with BEKUM jacketFour-layer braided fine copper wire with BEKUM sheathTwo-layer copper fine-wire braid with BENYL jacketFour-layer braided fine copper wire with BENYL sheath
OperationMechanical protectionMechanical protectionHF shieldingHF shieldingHF shieldingHF shielding
Wall thickness0,5 mm0,6 mm2,0 mm3,5 mm2,0 mm3,5 mm
Self-extinguishingJaFlame retardantJaJaFlame retardantFlame retardant
Temperature−30 to +80 °C−20 to +75 °C−20 to +80 °C ¹−20 to +80 °C ¹−20 to +80 °C ¹−20 to +80 °C ¹
Colourblack (RAL 9005), grey (RAL 7001)black (RAL 9005)black (RAL 9005), grey (RAL 7001)black (RAL 9005), grey (RAL 7001)black (RAL 9005)black (RAL 9005)
Nominal size9–120 mm9–120 mm20–120 mm20–120 mm20–120 mm20–120 mm
ApplicationsNATO, Bundeswehr, Telecom, Cable harnesses, Automotive, Rail vehiclesSwitch cabinet building, controls, installations, machines, equipmentControl cables, signal cablesControl cables, signal cablesControl cables, signal cablesControl cables, signal cables

* = closure Z, M or G. ¹ General temperature range of the system sleeving; the catalogue gives no separate range for the shielded series.

NATO manufacturer code
CO290
Bundeswehr test no.
BWB 5975 12 154 3887
Telekom test no.
FTZ 736 551

Selection guide

Which one do you need?

Measure the thickness of your cable bundle and answer a few questions. You will immediately see which sleeve fits, along with the article number. Not sure? Let us check it for you.

2. Shielding needed?

3. Environment

4. Installation

Our advice

BEKUM with Z closure

High-quality soft PVC

Article number

SKBZ-35

Nominal size

35 mm

11.0 kg per 100 m · black RAL 9005

  • Mechanical protection and bundling, without shielding.
  • BEKUM sheath: very flexible PVC, universally usable and self-extinguishing.
  • Temperature range −30 to +80 °C.
  • Z closure: standard closure, quick and efficient to close.
  • Nominal size 35 mm: the smallest standard size for a bundle of 35 mm.

We email you the result, to keep or forward. See our privacy statement.

Request a price All sizes BEKUM

A specialist checks the advice against your situation. No obligation.

Article numbers

Sizes and article numbers

414 combinations of series, colour, closure and size. Other sizes between 9 and 120 mm on request.

black · Z-sluiting

BEKUM

Very flexible, universally usable sleeving to protect and bundle sensitive cables, cable harnesses and wires.

Sizes
18
Size range
9–120 mm
Wall thickness
0,5 mm

How to read the article number

50mlengthSKseriesBcolourZclosure-45size

Supplied on reels of 50 m.

Article numberØ nominal
SKBZ-99 mm
SKBZ-1212 mm
SKBZ-1414 mm
SKBZ-1616 mm
SKBZ-2020 mm
SKBZ-2525 mm
SKBZ-3030 mm
SKBZ-3535 mm
SKBZ-4040 mm
SKBZ-4545 mm

All dimensions in mm, tolerance ±10%. Gewicht netto. Bestelvoorbeeld: 50m SKBZ-50.

Assembly

How it works

Useful if cables are already connected, or if you want to add a cable later. All you need is a small pair of pliers.

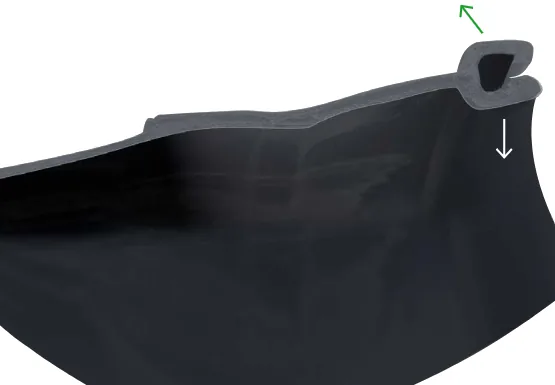

  1. Open the U-profile of the sleeve

    01

    Wrap around the bundle

    Place the flat sleeve around your cables and pull the closure open slightly.

  2. Insert arrow profile between the gripper jaws

    02

    Apply the pliers

    Place the Z pliers on the closure, with both sides between the jaws.

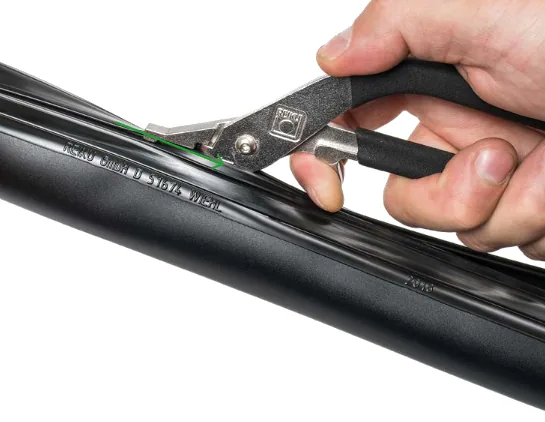

  3. Closing the sleeving with the Z-pliers

    03

    Zip closed

    Pull the pliers along the bundle. The sleeve closes like a zip along its entire length.

Detailed installation instructions
  1. 01

    Take the Z-pliers in your right hand.

  2. 02

    Place the sleeving around the cables. The overlap is on the left, the arrow profile on top.

  3. 03

    Pull the U-profile open slightly.

  4. 04

    Hold the Z-pliers loosely and place them about 20 mm above the U-profile.

  5. 05

    Insert the arrow side between the jaws of the pliers, in the direction of the arrow on the pliers, into the U-profile.

  6. 06

    Hold the sleeving at the closure and zip the rest closed.

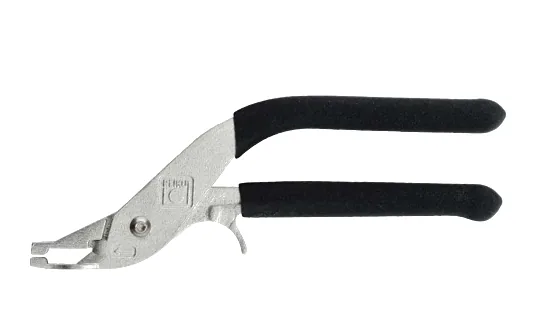

Z pliers for the Z closure

You press the M closure shut with the M slider or with your fingers, the G closure (hook-and-loop) by hand.

Application

Where it is used

From wiring harnesses in vehicles to cabling in control cabinets and machines. We combine the jacketing with the cable entry or cable carrier around it.

Machine building Automotive Defence and aviation

Soft PVC (BEKUM)

  • NATO
  • Bundeswehr
  • Telecom
  • Cable harnesses
  • Automotive
  • Rail vehicles

Polyester fabric (BENYL)

  • Switch cabinet building
  • Controls
  • Installations
  • Machines
  • Devices

Shielded (B2X, B4X)

  • Control cables
  • Signal lines
