Cable carriers for every movement.

Dark grey cable carrier with an open section, showing a pink cable and the text "KABELSCHLEPP" inside

MONO

Cable carrier for standard applications

HiInner height: 10–15 mm
BiInner width: 6–40 mm
KRBending radius: 18–50 mm
Travel lengthTravel length: up to 70 m

View 3 types

Black cable carrier with orange and white cables, divided by vertical and horizontal dividers

QuickTrax®

Quiet, compact cable carrier for fast installation in light industrial applications.

HiInner height: 17,6–20 mm
BiInner width: 15–65 mm
KRBending radius: 28–125 mm
Travel lengthTravel length: up to 80 m

View 2 types

Black cable carrier with a hinged-open crossbar, partly filled with cables

TKK

Robust plastic cable carrier

HiInner height: 39 mm
BiInner width: 39–99 mm
KRBending radius: 46–95 mm
Travel lengthTravel length: up to 120 m

View 1 type

Black cable carrier with orange and purple cables inside, diagonally from left to top right

TKP35

Robust, quiet cable carrier

HiInner height: 32 mm
BiInner width: 16–50 mm
KRBending radius: 48–125 mm
Travel lengthTravel length: up to 2.3 m

View 1 type

Black cable carrier with opening links and yellow interior dividers

UNIFLEX Advanced

Light, quiet all-rounder with a wide range of applications

HiInner height: 17,5–80 mm
BiInner width: 15–600 mm
KRBending radius: 28–500 mm
Travel lengthTravel length: up to 200 m

View 7 types

Basic Line Plus · Open

Grey cable carrier with purple, white and green cables, secured with black clamps

EasyTrax®

Light plastic cable carrier with unique click system

HiInner height: 4,6–25 mm
BiInner width: 7–78 mm
KRBending radius: 10–200 mm
Travel lengthTravel length: up to 80 m

View 4 types

Basic Line Plus · Open

Grey-white cable carrier with purple and black cables, curved against a light background

PROTUM®

Specially designed for modern office and workplace environments

Assembled to order in Ruurlo

HiInner height: 10–21,5 mm
BiInner width: 50–52 mm
KRBending radius: –
Travel lengthTravel length: –

View 2 types

Vario Line · Open

Black cable carrier with purple and black cables, partly visible, on a grey background

K

Cost-efficient and robust cable carrier

HiInner height: 36–58 mm
BiInner width: 68–700 mm
KRBending radius: 75–385 mm
Travel lengthTravel length: up to 260 m

View 2 types

The basics

What is a cable carrier?

A chain of links that safely carries cables and hoses along with a moving machine part. Stroke after stroke, for years.

01
Guides cables and hoses that move with the machine
02
Monitored the bending radius, so no cable bends too tightly
03
Prevents torsion, chafing and cable breakage

Read the full article

Where are cable carriers used?

Wherever cables and hoses move with a machine: in mechanical engineering, on CNC machining centres, in robotics, on cranes and in production lines. The energy chain (also called drag chain or cable chain) keeps everything organised and protected, stroke after stroke.

Plastic or steel?

Plastic cable carriers are light, quiet and corrosion-free, which makes them the first choice for most machines. Steel cable carriers only come into play for heavy loads, long self-supporting lengths or extreme environments such as blast furnace and offshore applications.

Open or closed?

An open drag chain is easy to fill and inspect. If you work with swarf, dust or dirt, an enclosed cable chain fully protects the package: the cables stay clean and last longer.

From short strokes to hundreds of metres

From a Z axis of half a metre to travel lengths of hundreds of metres on gantry cranes: there is a set-up for every stroke length. Self-supporting, gliding or with guide channels. We calculate it for you.

How do you choose the right cable carrier?

Four things determine the choice: the travel length, the speed, the cable package (diameters, weight and minimum bending radius) and the environment. With those details you can almost always choose the right series. How to choose the right cable carrier.

The Wisman promiseFour fixed commitments on every order, from a checked configuration to one dedicated point of contact.Read the promise

Projects

Cable carriers
in practice.

From container cranes to bridges and production lines: cable carriers we supplied, installed and maintain.

Heavy-duty cable carrier in the guide trough of a container crane

Heavy-duty TKHP cable carrier for container cranes at ECT Euromax Rotterdam

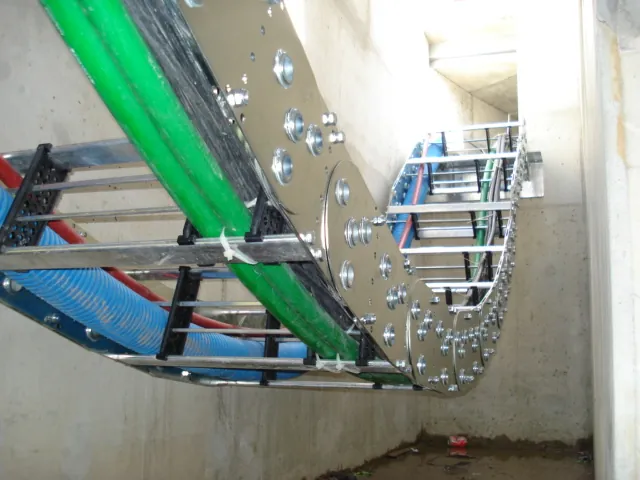

Cable carrier with cables and hoses in the basement of the Hanzebrug

Cable management for 8 metres of expansion on the Hanzebrug near Hattem

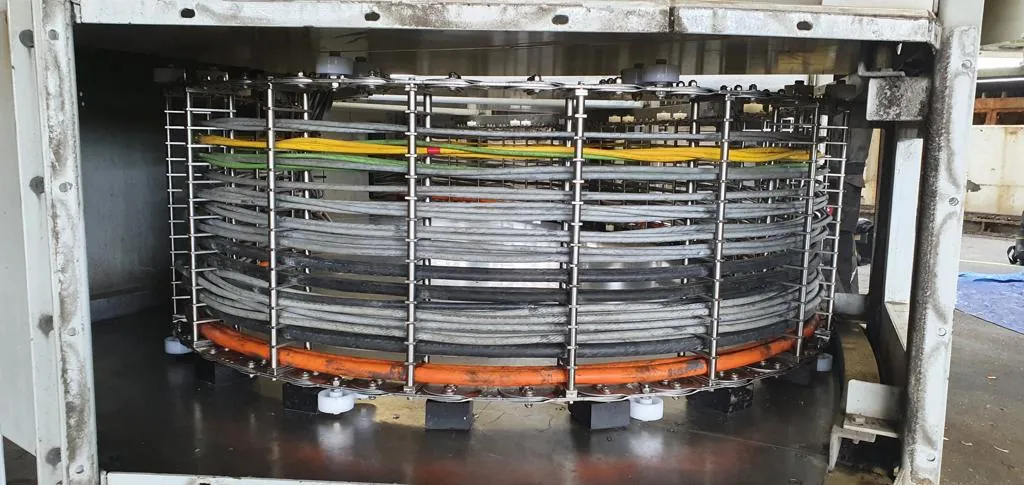

Circular carrier with cables and hoses under the swing bridge

Cable management for the swing bridges at Sas van Gent and Sluiskil with Kabelschlepp rotary carriers

Cable carrier in the guide channel along the length of the container crane, above the Rhine

Cable carrier upgrade for container cranes at Contargo Ludwigshafen

Telescopic antenna with aerial work platform and the Wisman Techniek van

Research and science

Cable management for twelve telescope antennas at the radio observatory

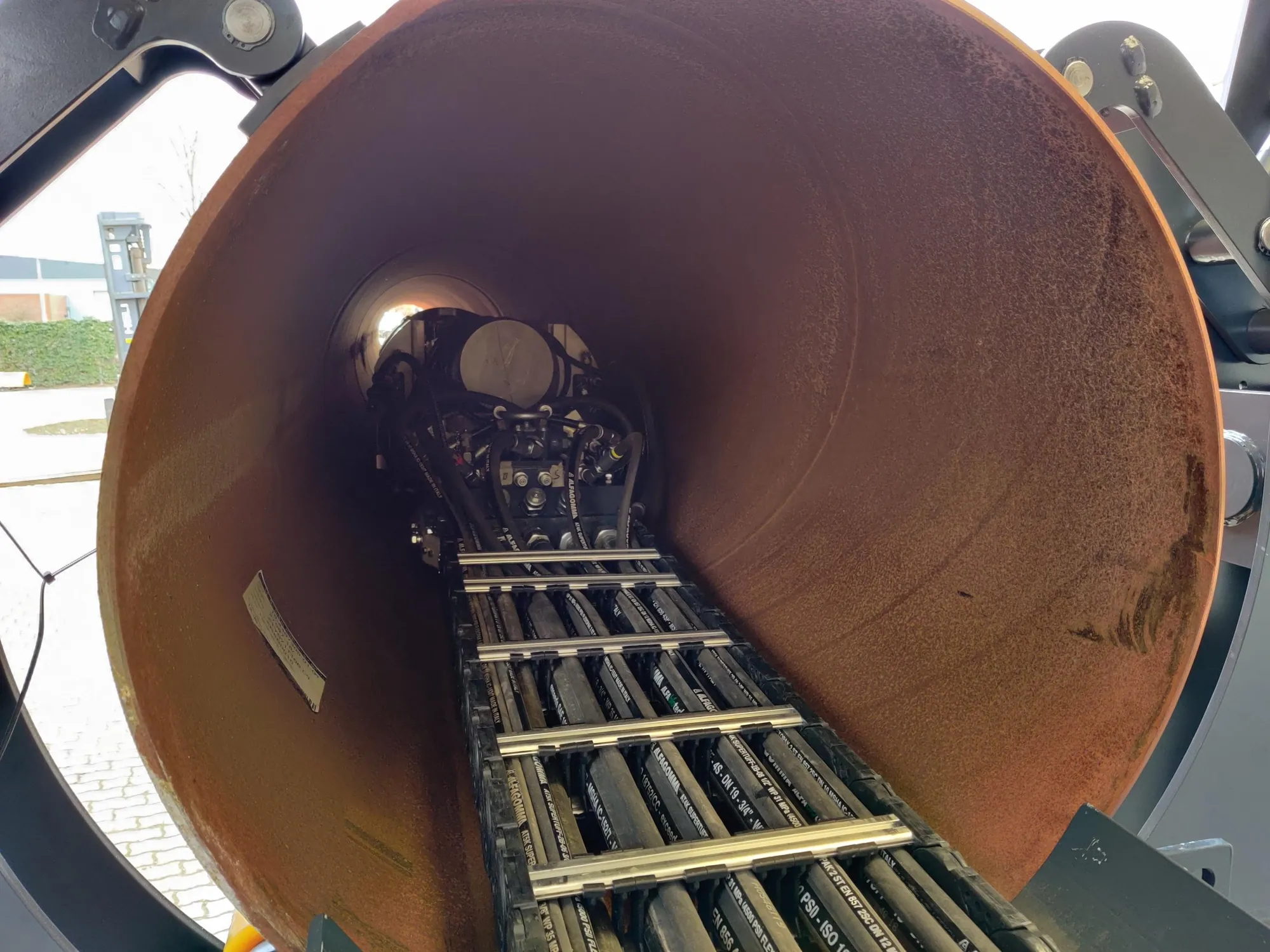

Cable carrier with hydraulic hoses in the tube, on its way to the welding machine

A mobile 18 metre cable carrier from a container for Maats Pipeline Professionals

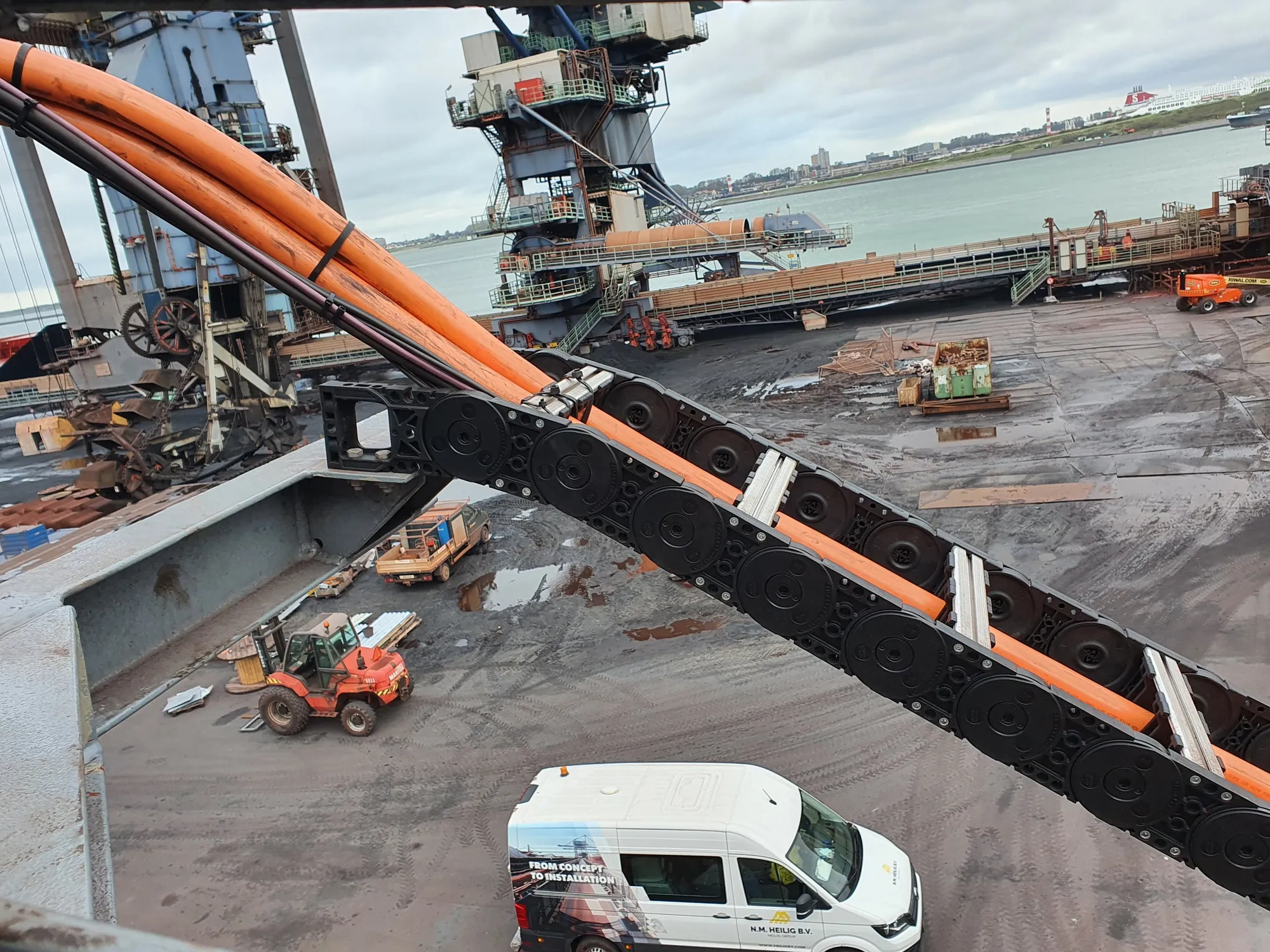

Cable carrier with orange cables on the extendable unloading arm, with the coal terminal in the background

Robust cable carrier for a telescopic unloading arm at a coal terminal in the Port of Rotterdam

Cable carrier under the movable gangway in the ferry port

Construction and installation

Reliable cable guidance for SPIE gangways in the ports of Harlingen and Terschelling

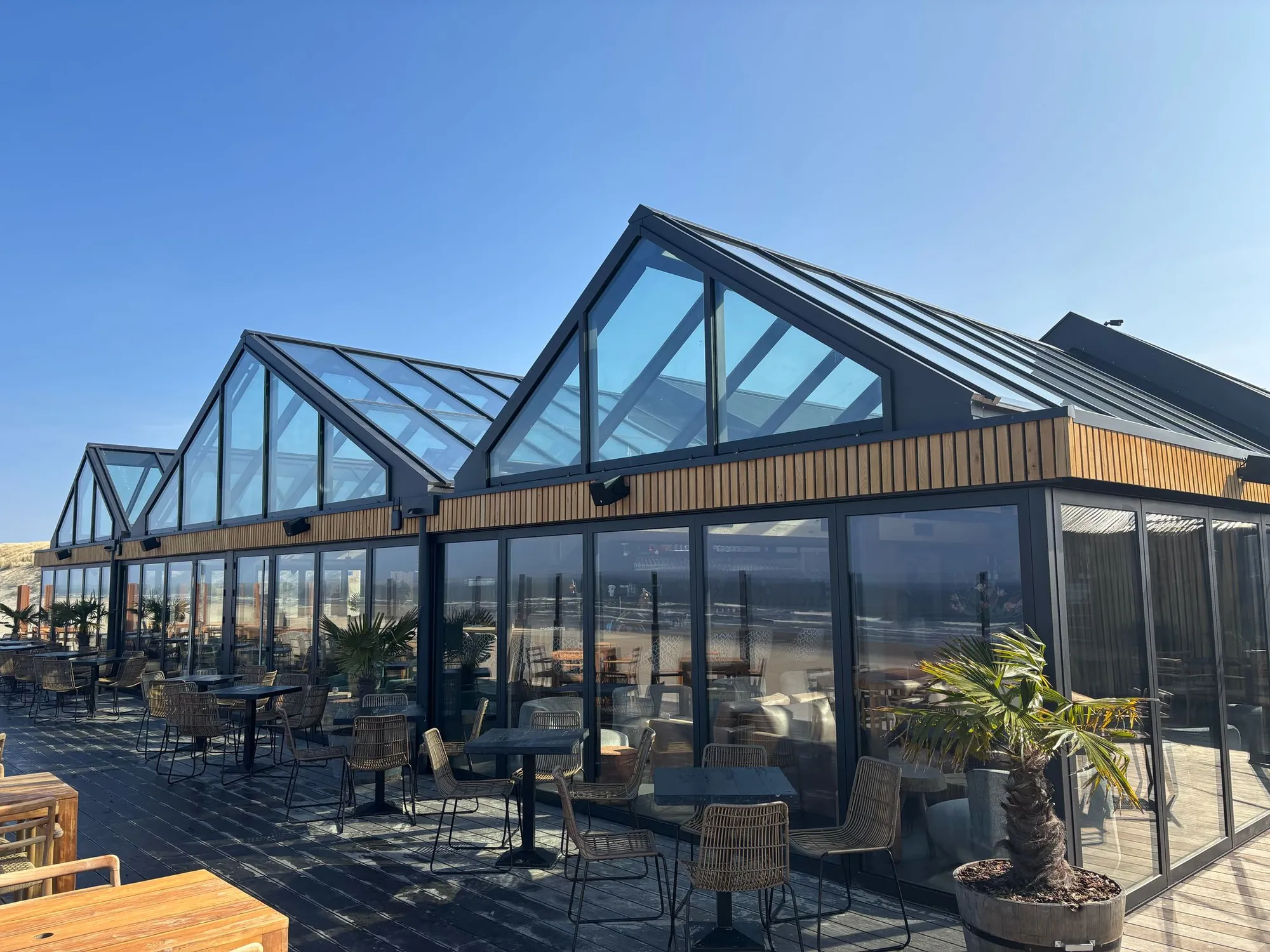

The beach pavilion on Texel with the sliding glass roof

Cable carrier for a sliding glass roof at a beach pavilion on Texel

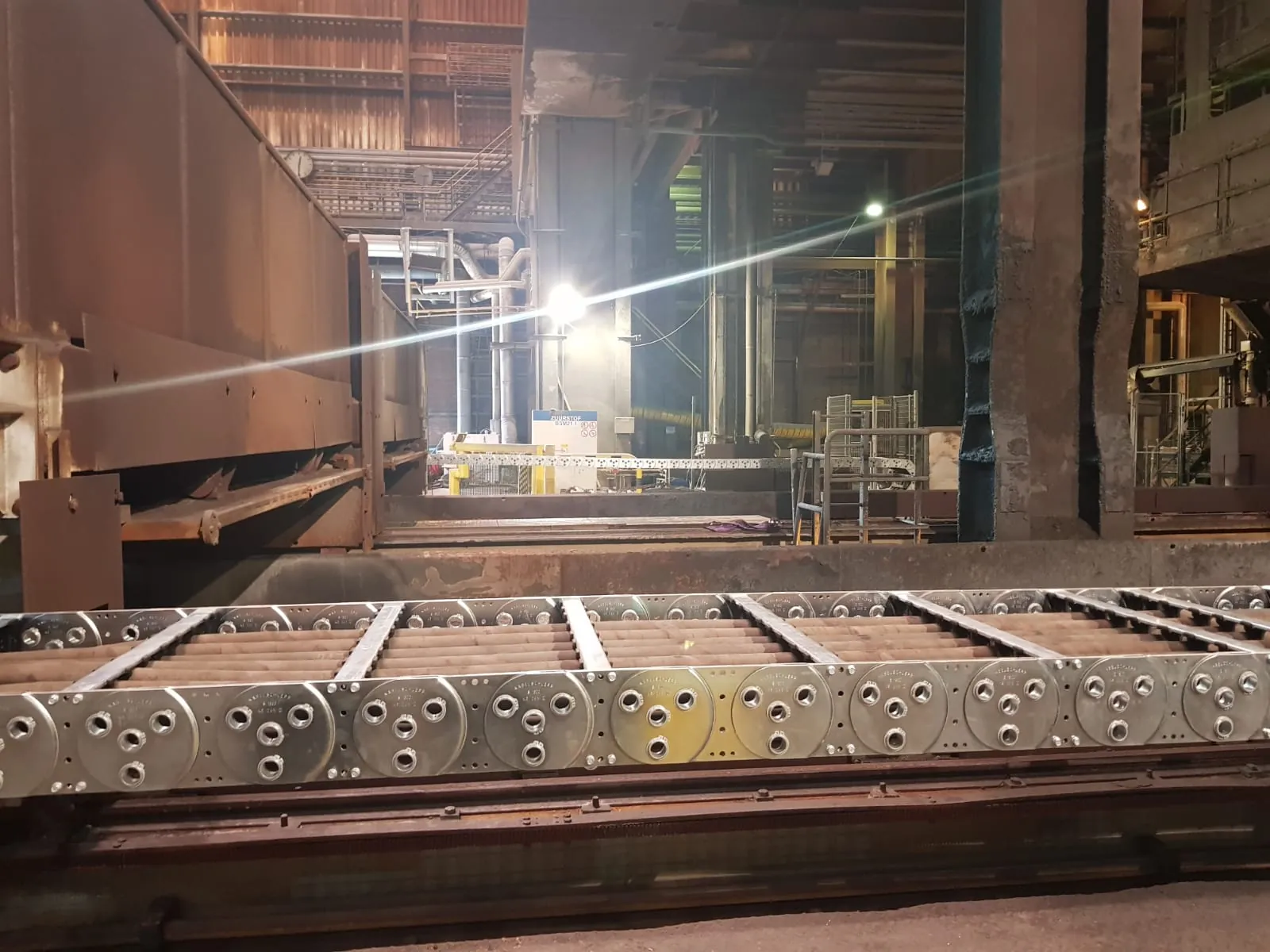

New steel cable carrier along the rolling line at Tata Steel

Optimal cable protection for a machine installation at Tata Steel in IJmuiden

Workstation design

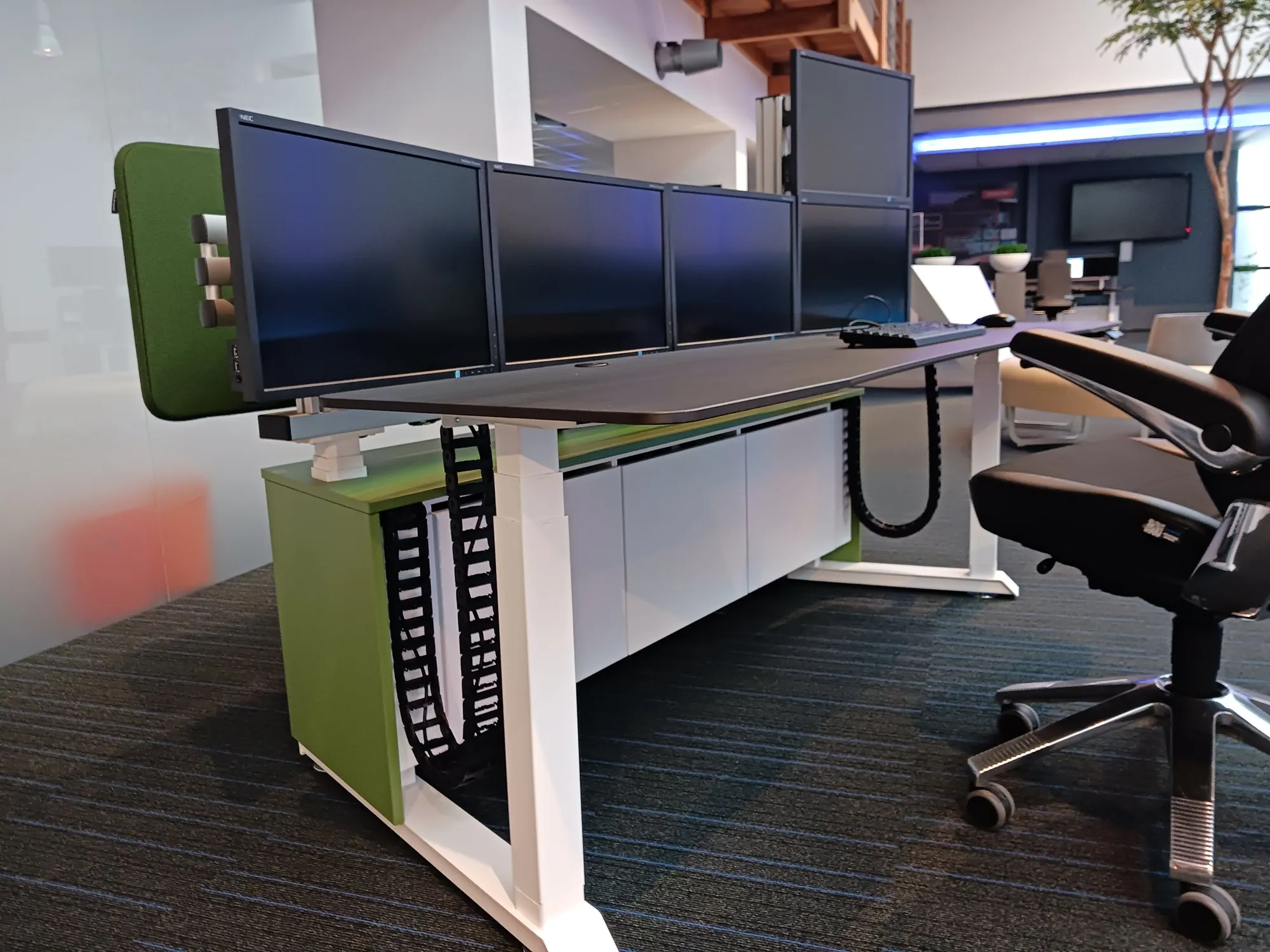

Compact plastic cable carriers for the ergonomic workstations of Brand Control Rooms

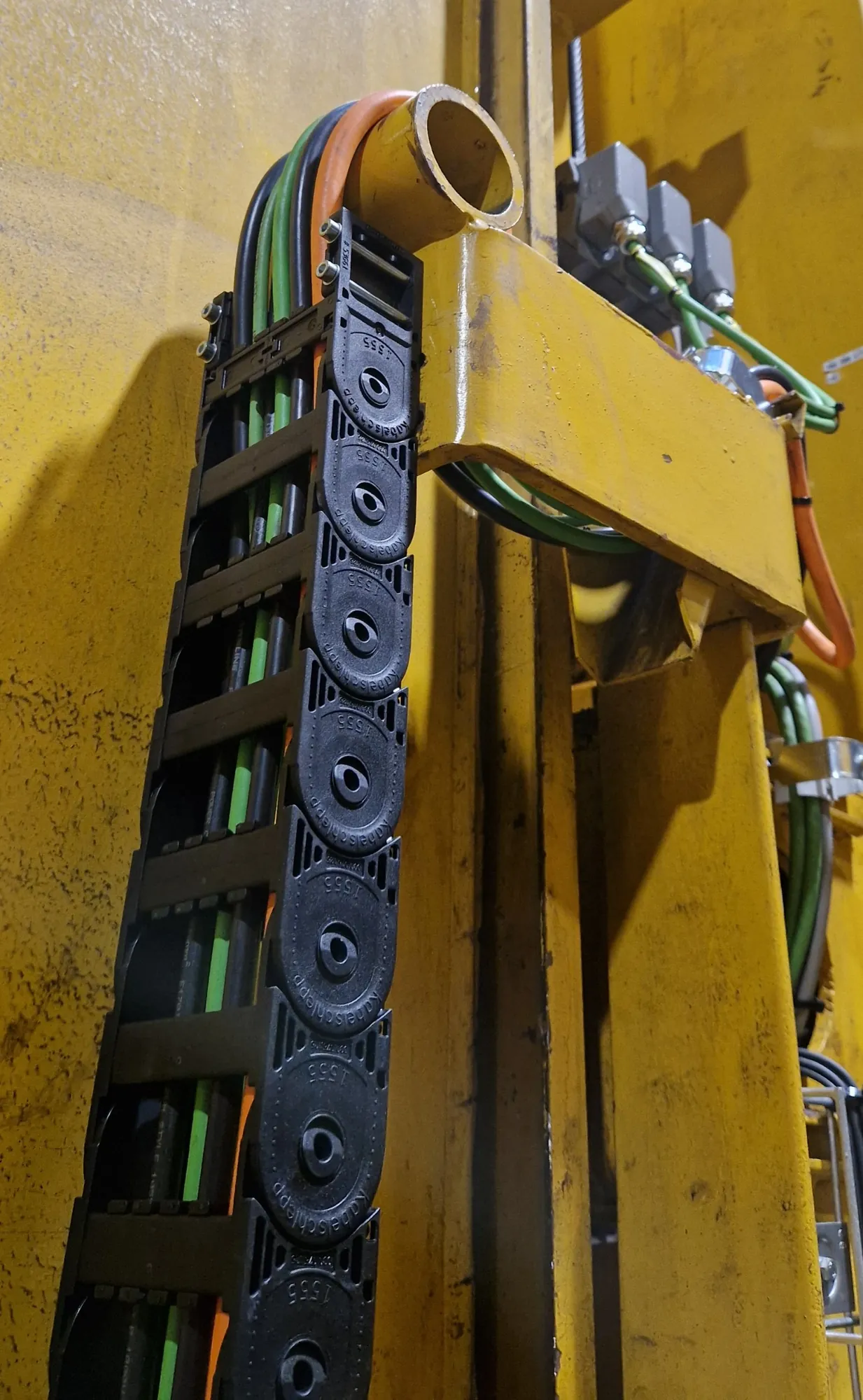

Plastic cable carrier from Tsubaki Kabelschlepp with cables on a warehouse crane

Five cable carriers for the modernisation of warehouse cranes at Centraal Boekhuis

The MC0950 cable carrier in the channel along the wall

Nuclear

MC0950 cable carrier for a crane in a nuclear room at COVRA

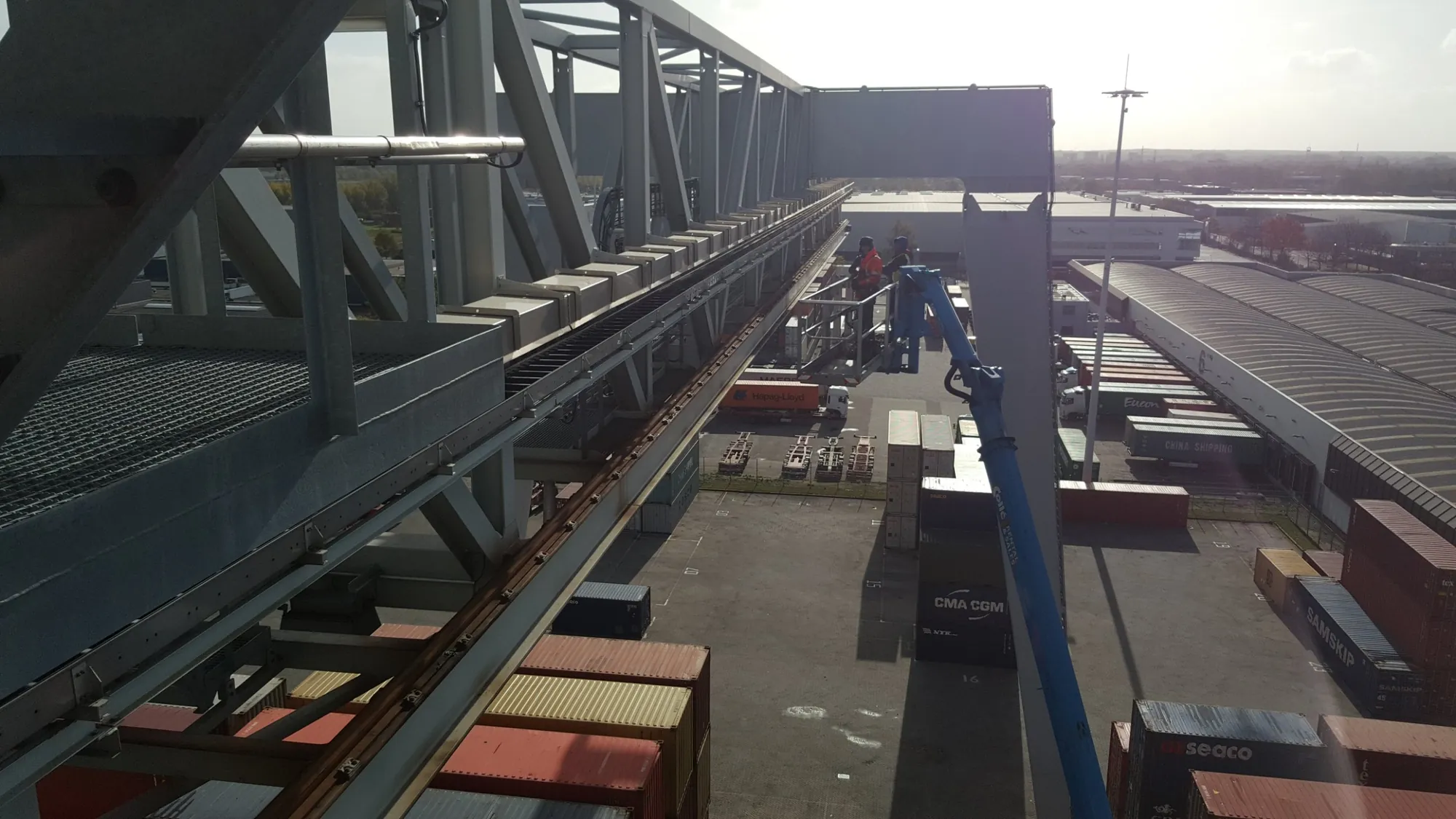

Cable carrier in the channel along the crane bridge, above the container terminal

Cable carrier with channel, installation and maintenance at ECT Barge Terminal Venlo

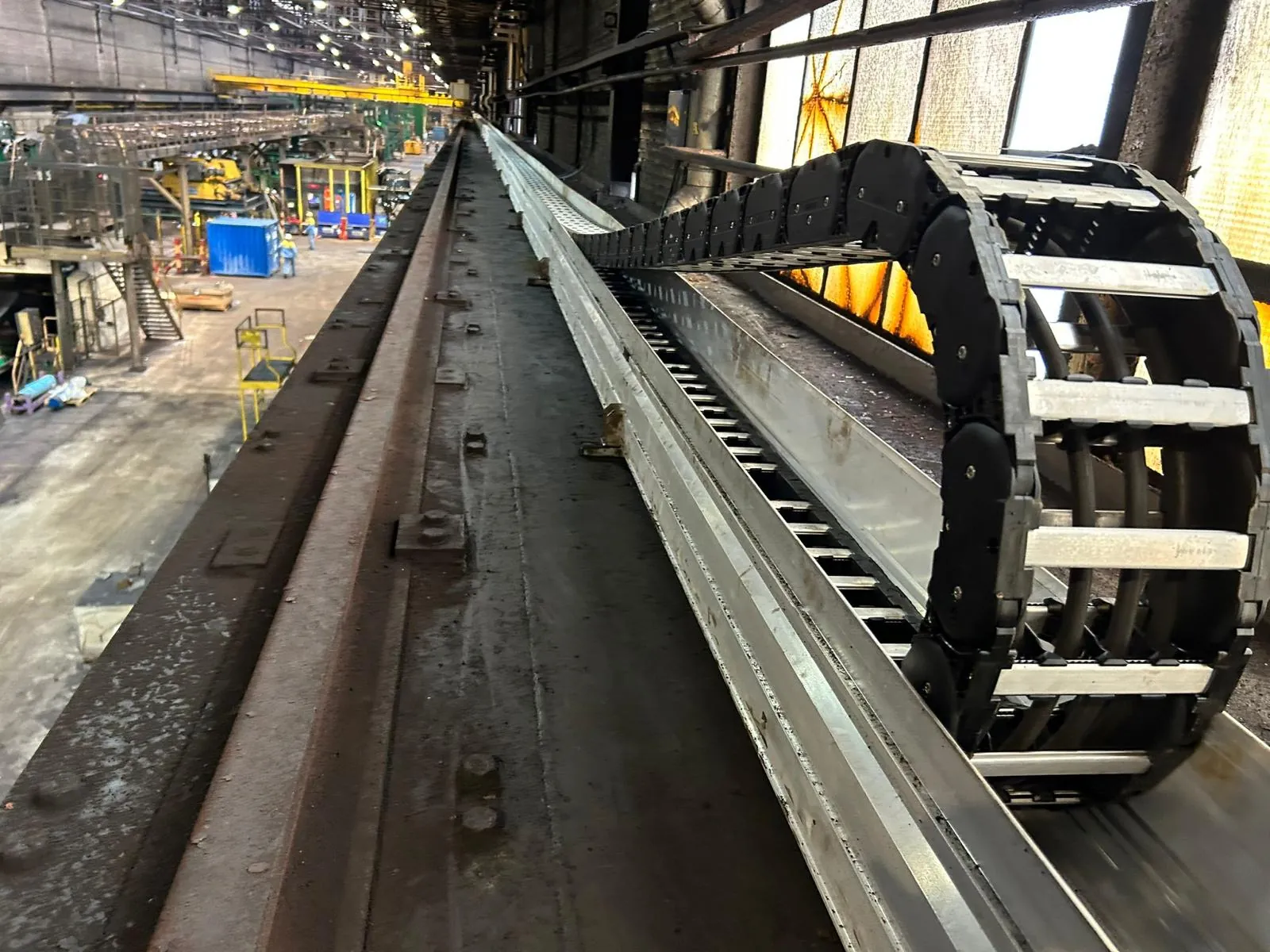

TKHP cable carrier in the channel along the crane runway at Tata Steel

TKHP cable carrier for a crane with 260 metres of travel at Tata Steel, for TES Industrial Systems

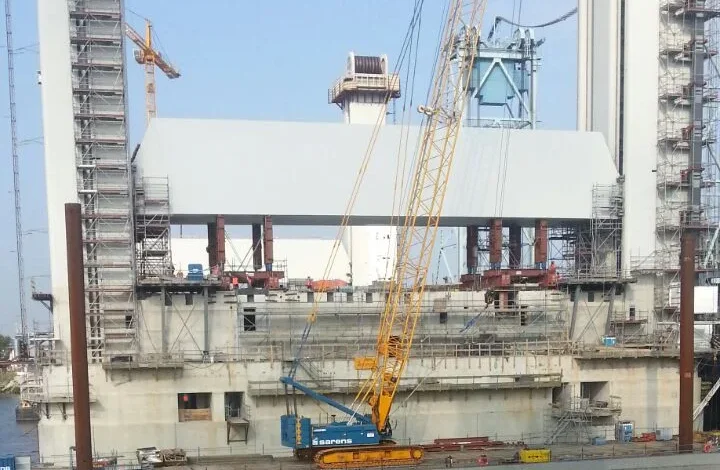

The Botlekbrug under construction, with the lift bridge piers

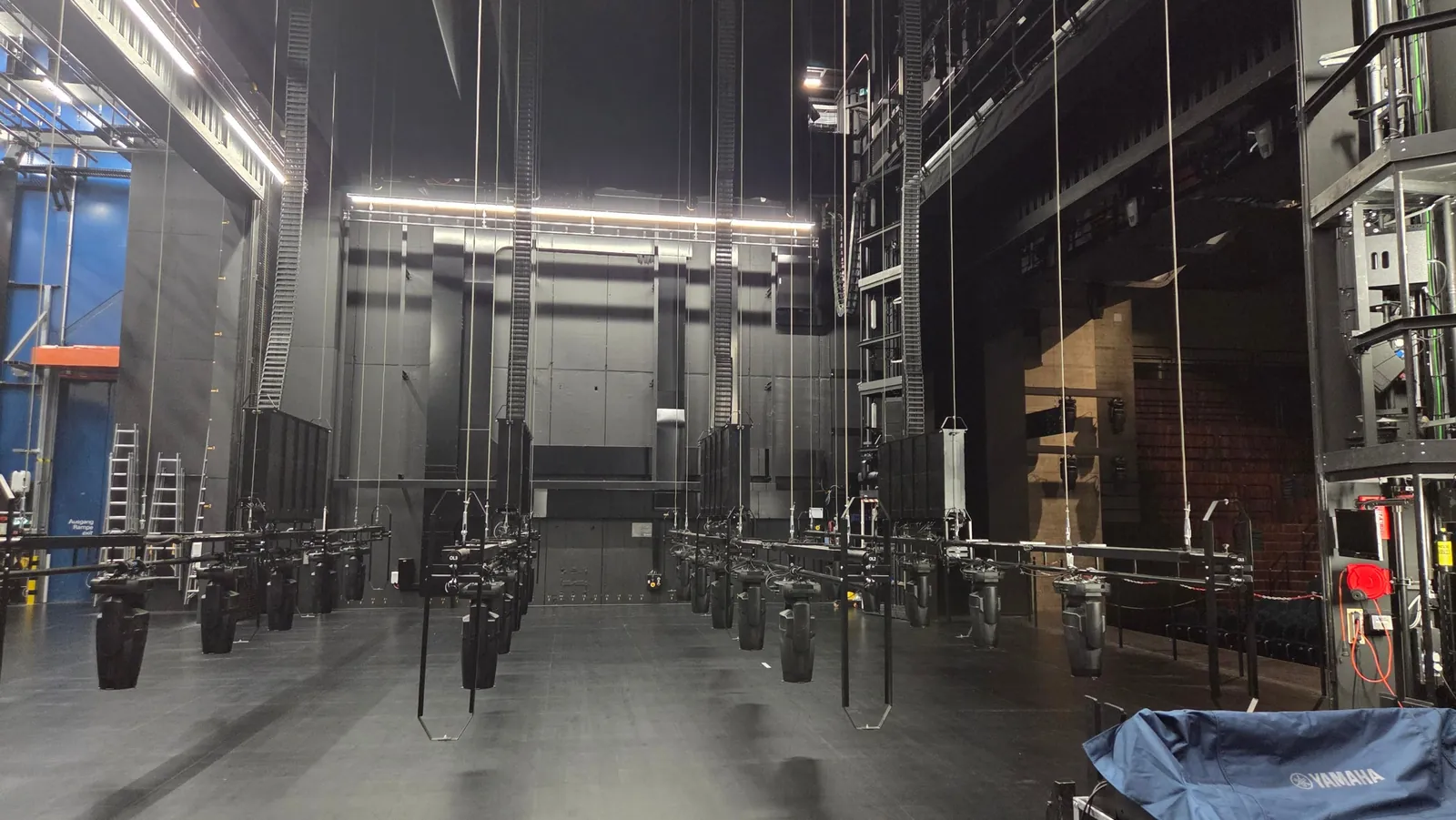

Cable carriers for the stage technology of Theater Winterthur, together with DTS2

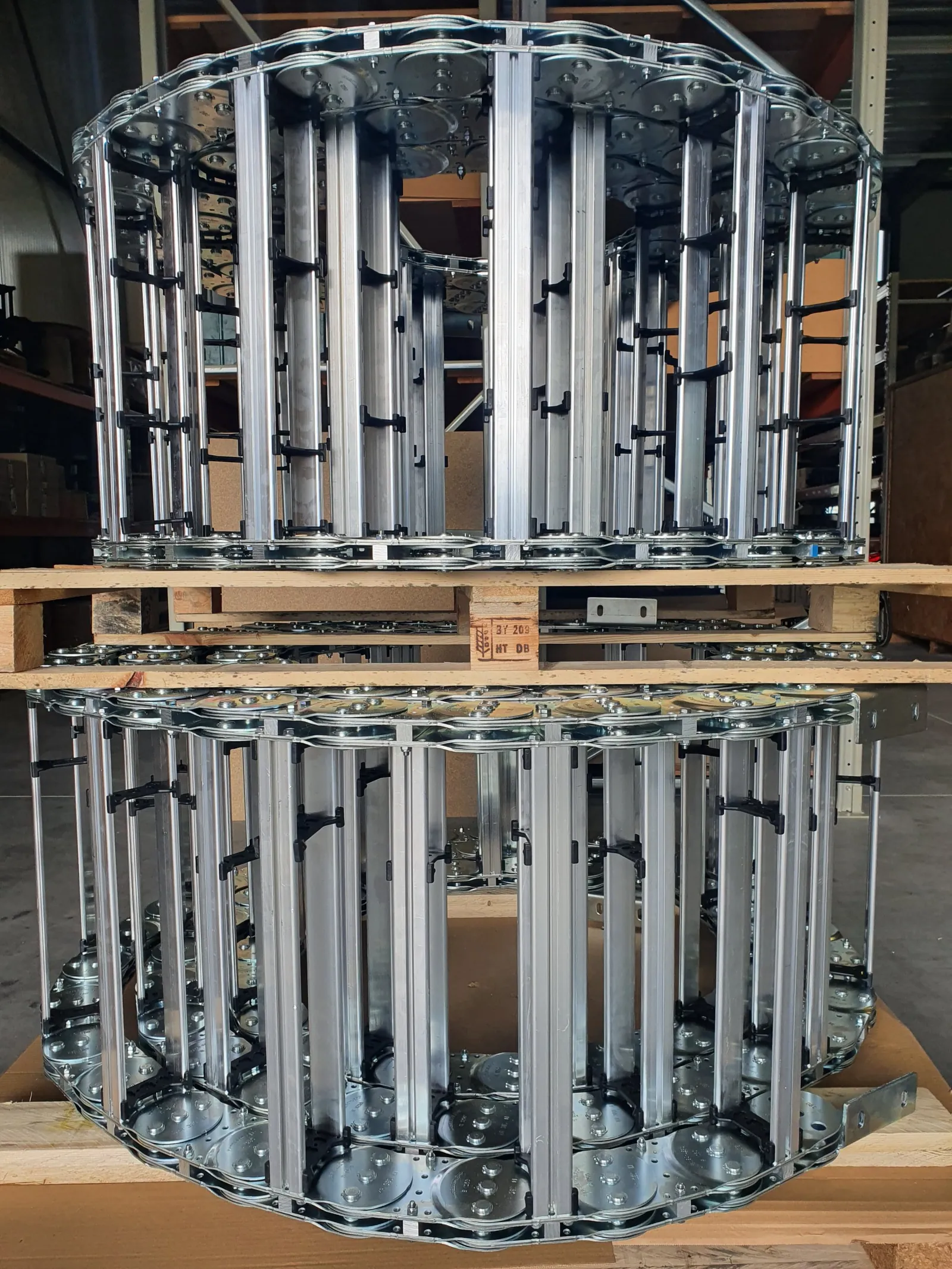

Two rolls of steel S1250 cable carrier with a double chain band on a pallet

Steel S1250 cable carrier with a double chain band for Uitenbogerd in Heukelum

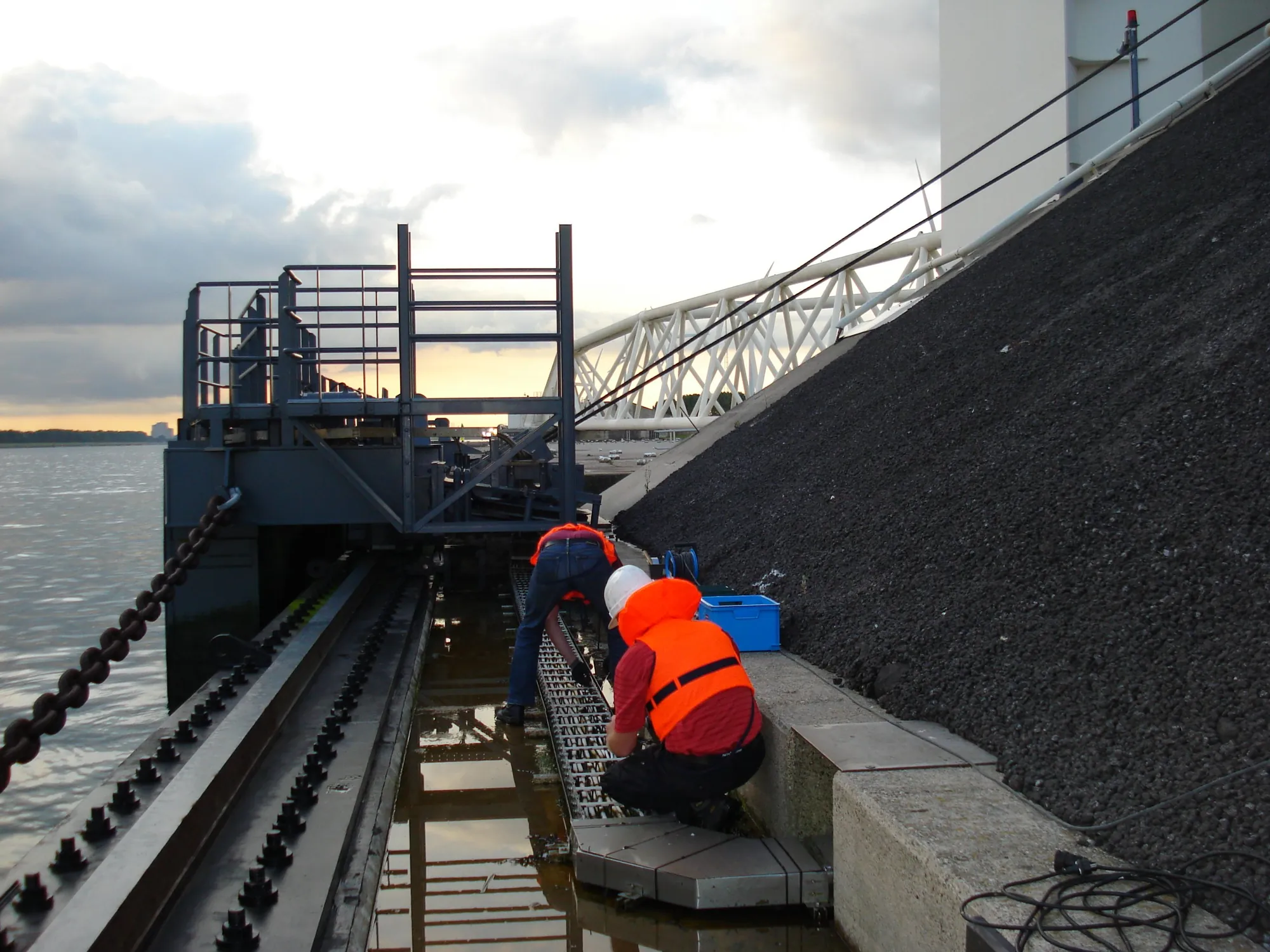

Technicians working on the stainless steel cable carrier at the Maeslantkering

Maeslantkering stainless steel cable carrier overhaul: service life extended

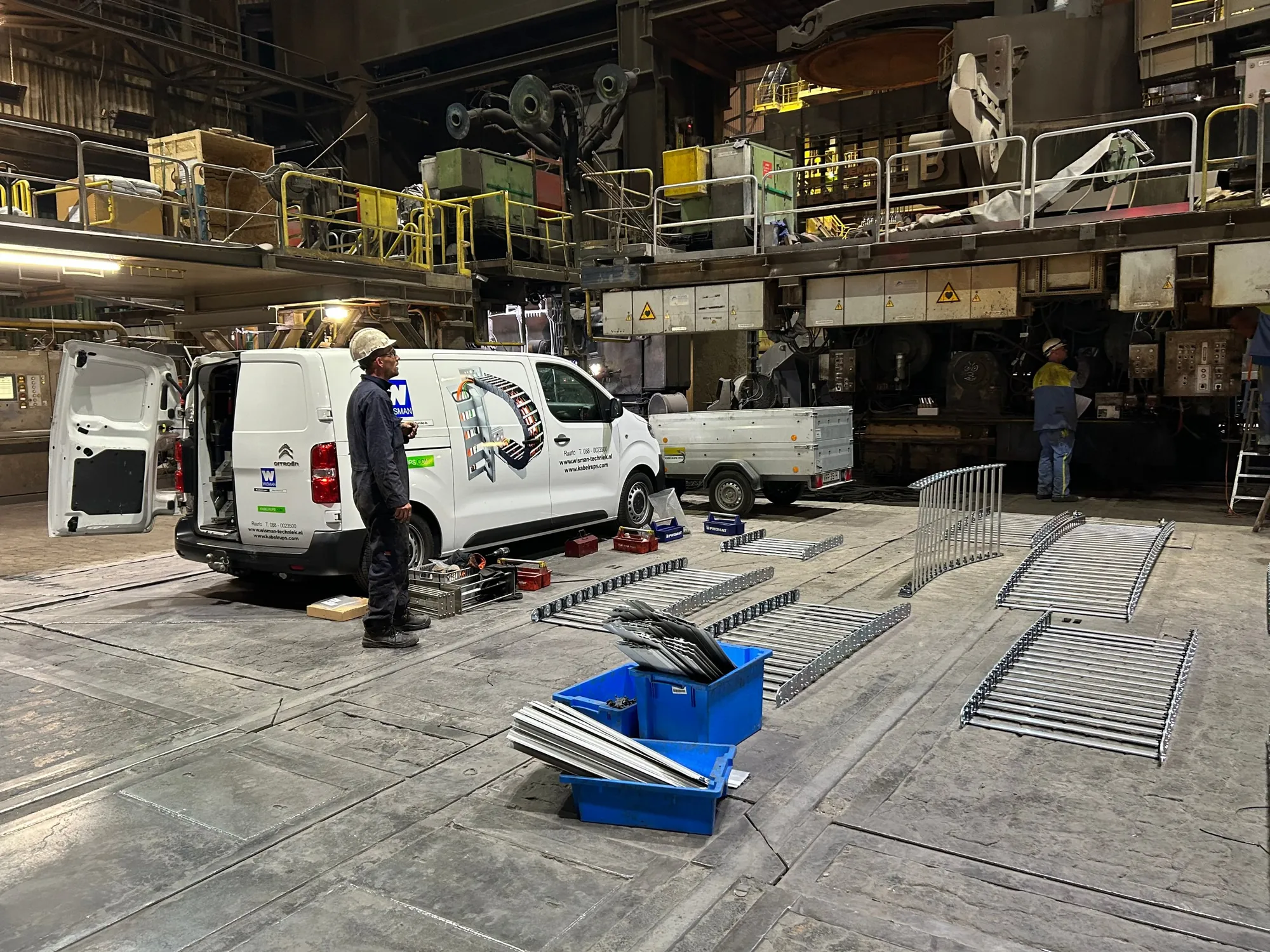

Wisman technician at the van, with the new cable carrier parts laid out in the Tata Steel hall

Maximum performance at Tata Steel through predictive maintenance of cable carriers

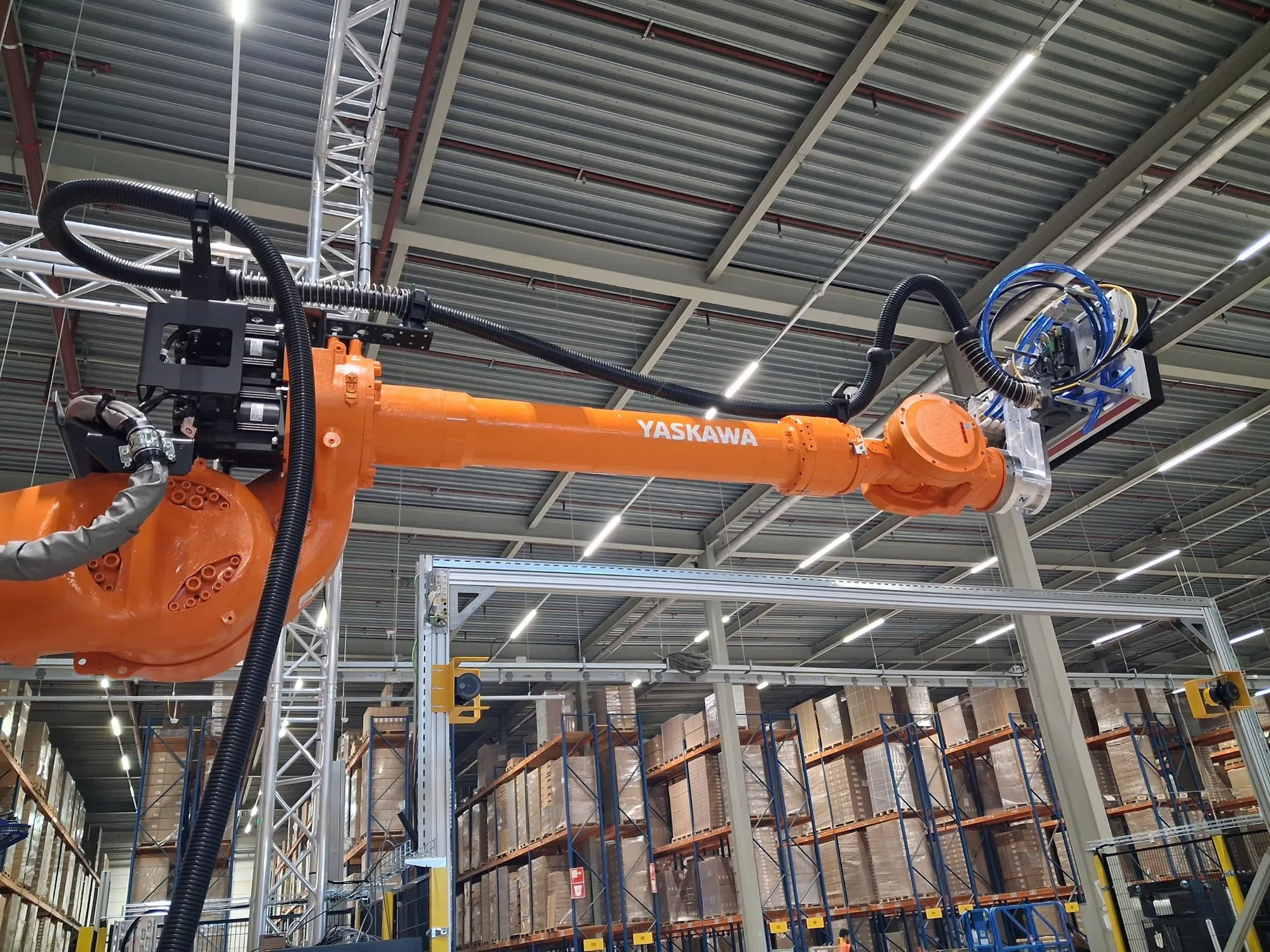

Yaskawa robot with Reiku dress pack from base to gripper

Retrofit of a Reiku dress pack on a Yaskawa robot at Mujin Europe

Cable carrier with cables and hoses on the Noble Drill drilling rig

Offshore

Fast repair of a defective cable carrier on a drilling rig for Noble Drill

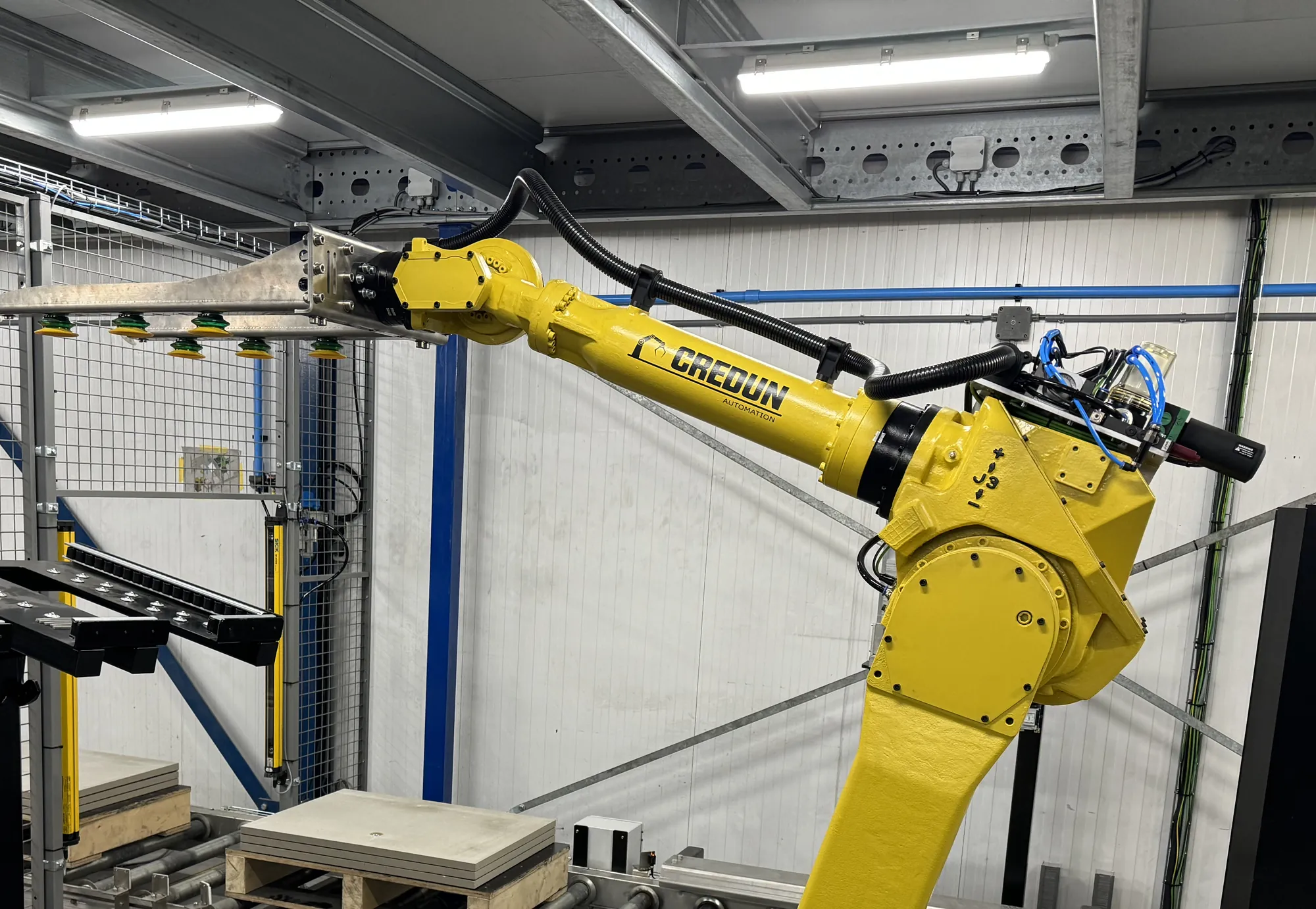

Yellow robot with the black Reiku protective hose along the arm

Reiku protective hose for full freedom of movement of robots at CREDUN Automation

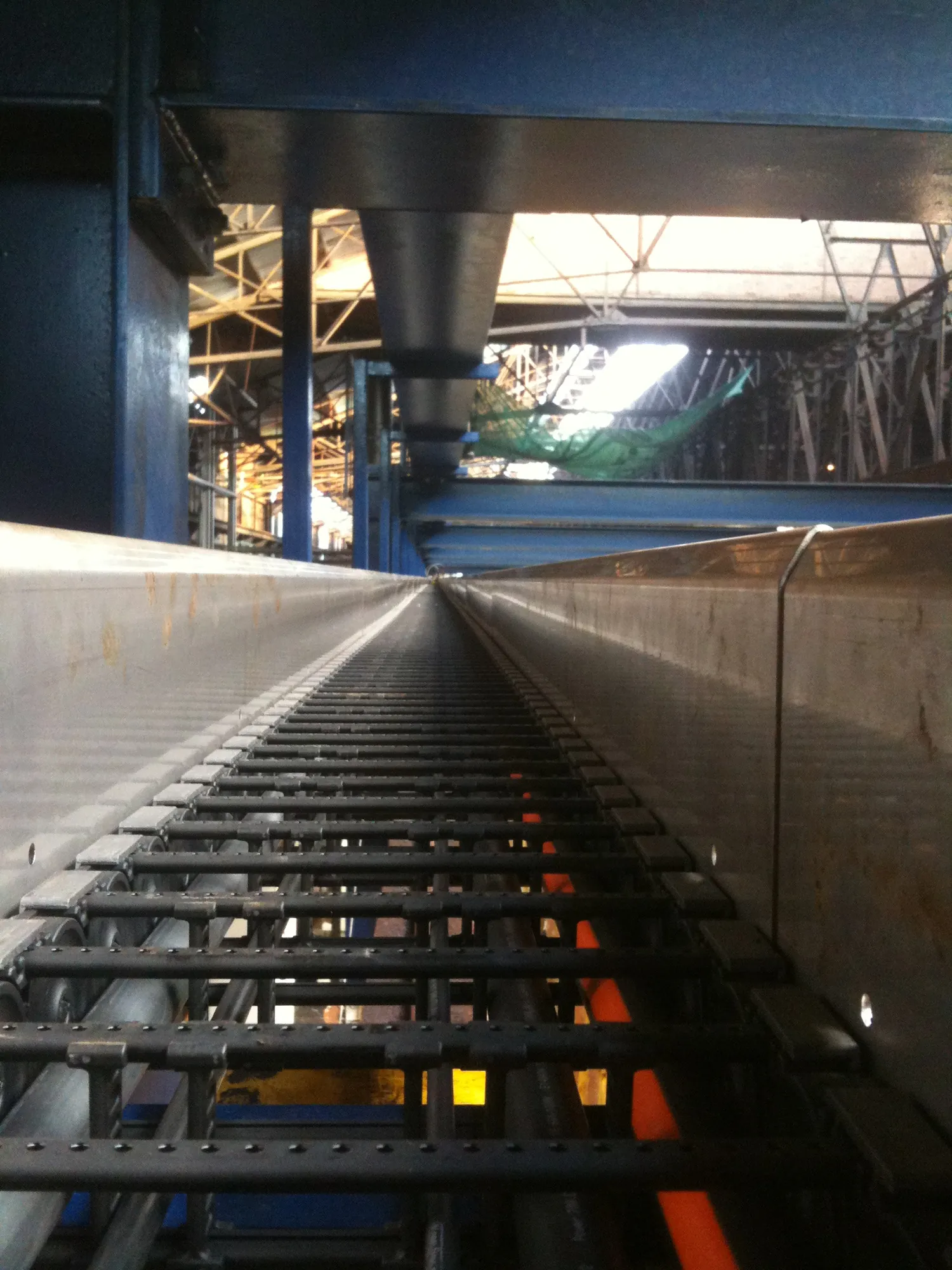

Cable carrier in the channel under the crane at FN Steel

Supply, installation and preventive maintenance of all cable carriers at FN Steel

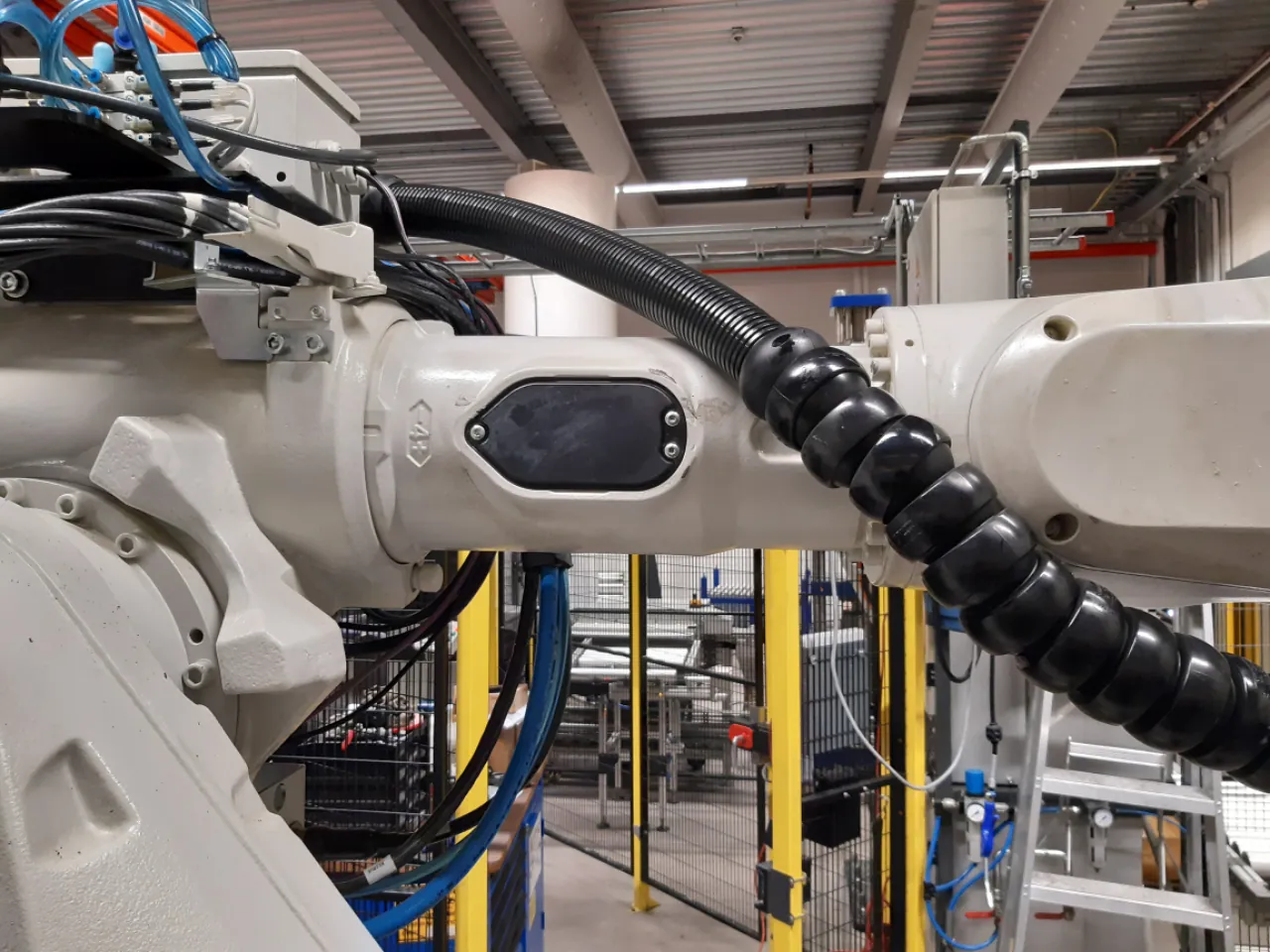

Dress pack with ball joints along the robot's forearm

Complete dress pack for a robot at Mifa Aluminium in Venlo

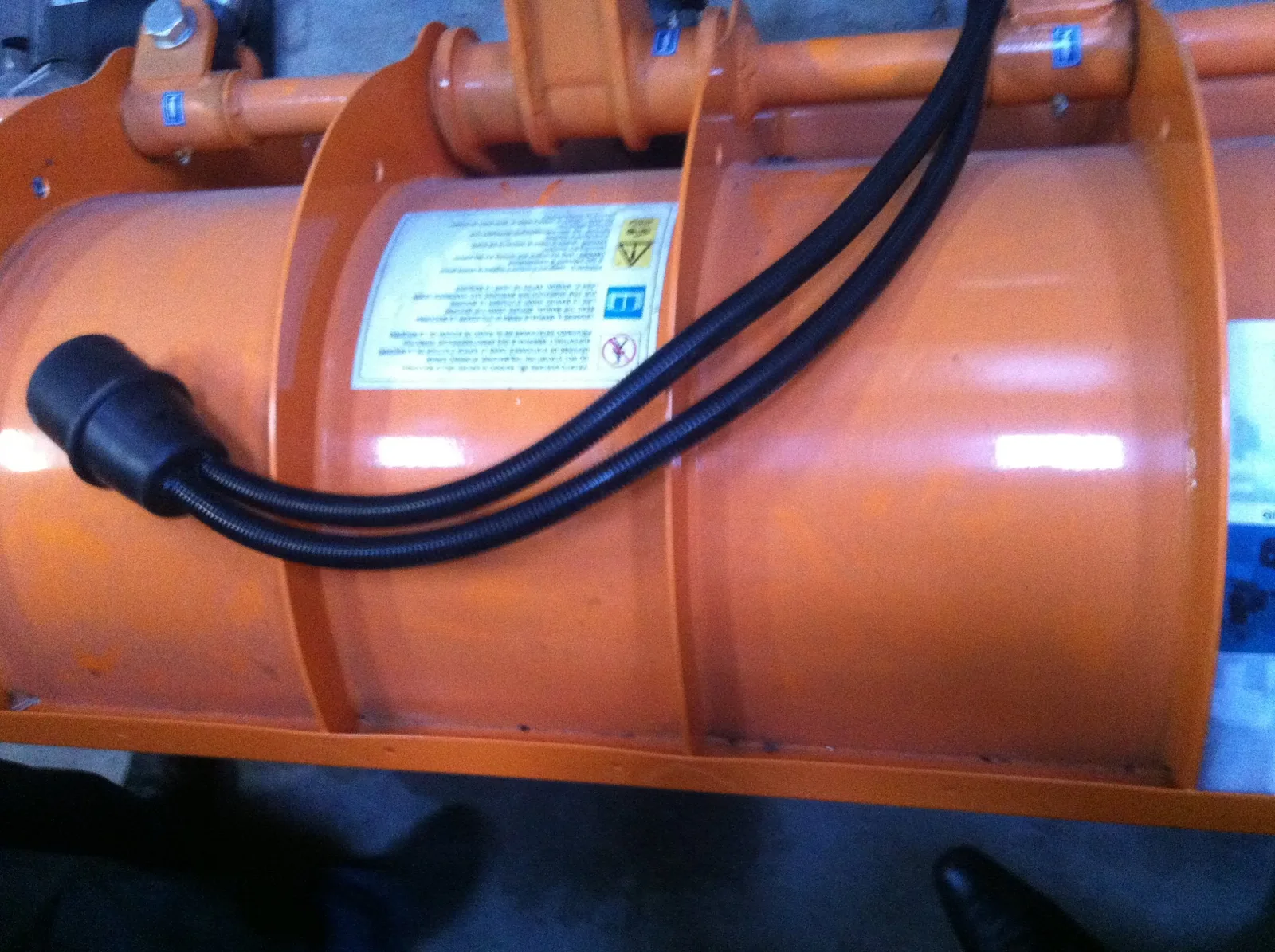

Protective hoses on an orange Okkerman snow plough

Protective hoses for Okkerman snow ploughs

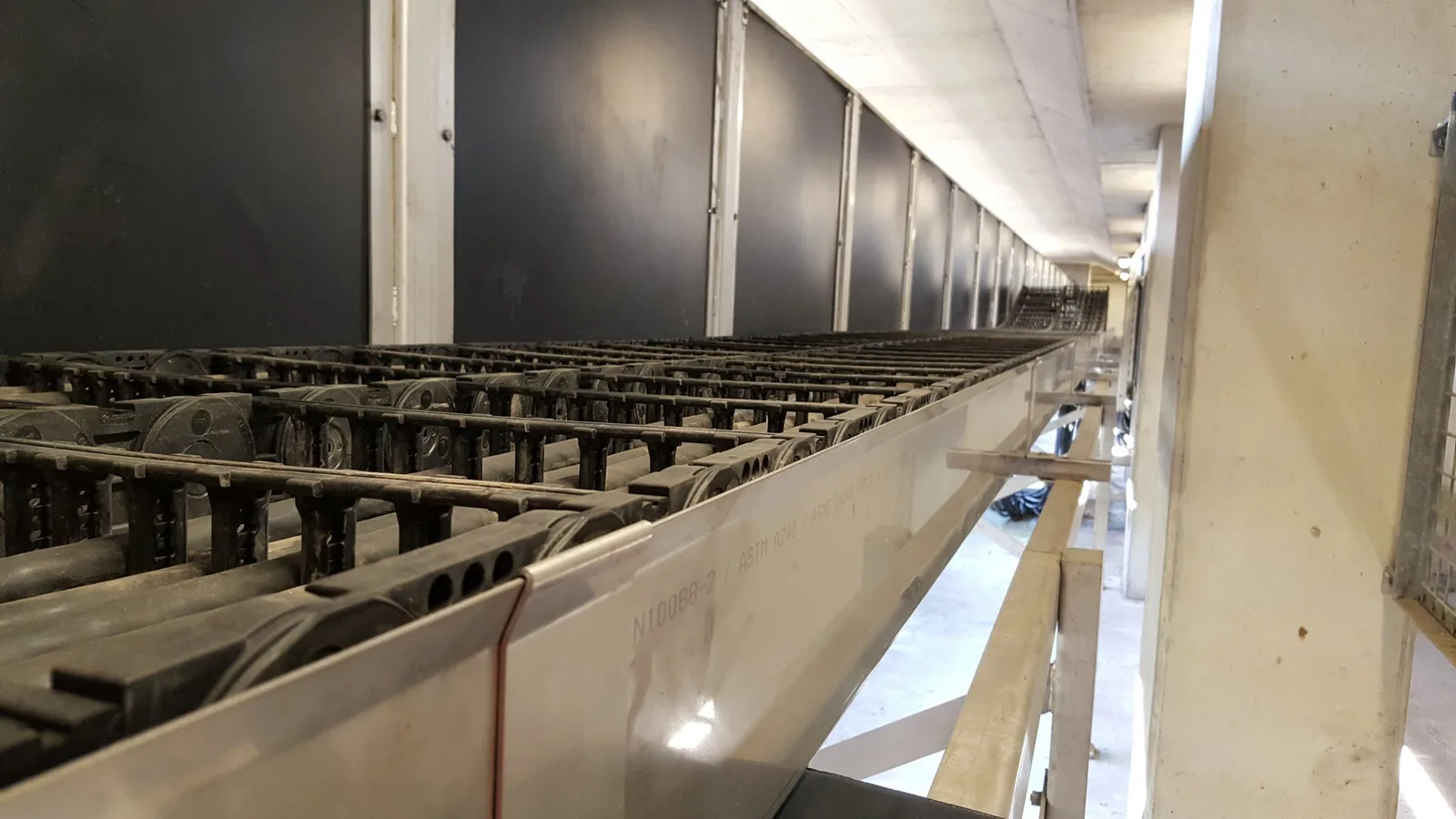

Cable carriers in the guide channel along the lock gate of the Oranjesluizen

Cable carriers and scheduled maintenance for the Oranjesluizen in Amsterdam

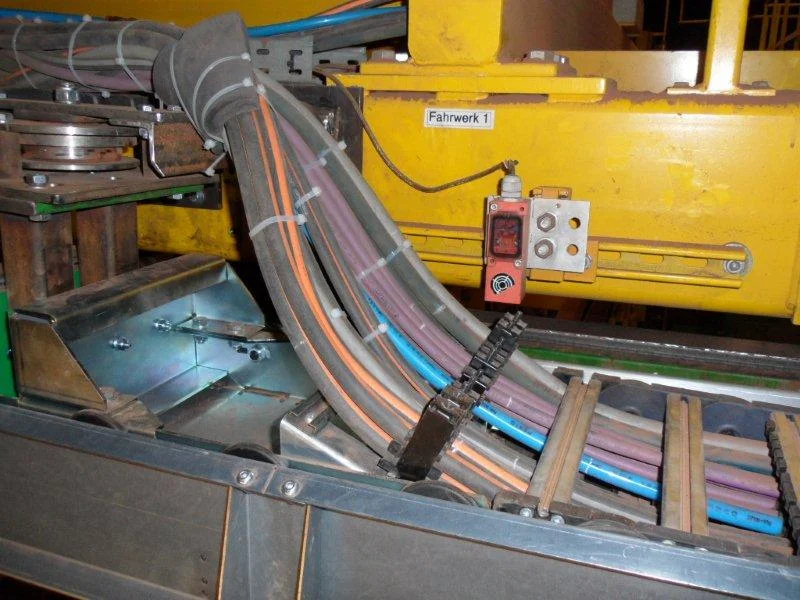

Cable carrier with rollers at the connection to a Wienerberger transfer car

Cable carriers and scheduled maintenance for Wienerberger's transfer cars

Protective hoses for Okkerman snow ploughs

Cable carriers and scheduled maintenance for the Oranjesluizen in Amsterdam

Cable carriers and scheduled maintenance for Wienerberger's transfer cars
