DES 10
Split cable entry system for cables with and without connectors
Very compact split frame for flexible and safe cable entry with a high degree of protection.
In brief
- Product group
- Cable entry frames
- Brand
- Detas Ultra
- Material
- Plastic
Documentation
Want to try the fit yourself first?
Description
About the DES 10

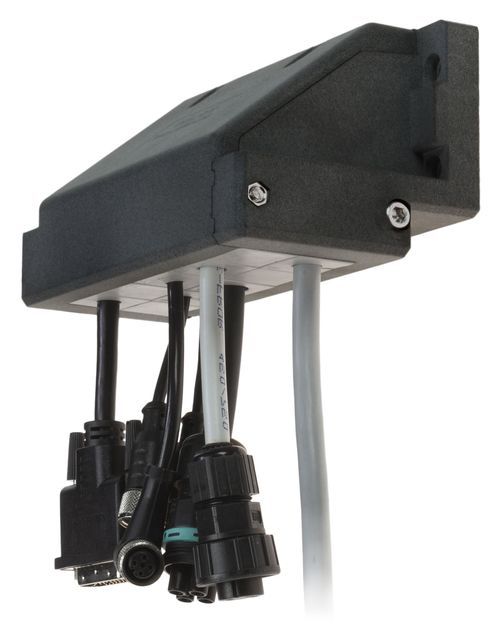

The DES 10 split frame makes it possible to route cables with and without connectors with diameters of 2 to 35 mm, thanks to the various cable entry rubber holders available. The frame's side closure provides strain relief and protection against dust and water.
Open entry grommets can be placed freely in the frame. An ingress protection of IP66 or NEMA 4X is achieved with any combination of entry grommets (single, double, quadruple or breakthrough).
The overmoulded seal and the fully V0 self-extinguishing properties of the system make the DES series a unique product.
Not sure whether the DES 10 fits?
Send us the number of cables, the diameters and whether they have connectors. We check the choice and put together the right version.
Ask for advice on the DES 10What Wisman adds
Not just an article number
We look at the whole cable route. The entry in the cabinet should be right just as much as the carrier moving in front of it.
- Advice on your cabinet: which entry, which size, how many cables
- One point of contact from cable carrier to control cabinet wall
- Datasheets and documentation per model available immediately
- Matched to your cable package from the configurator or ChainLogic
Cable entry frames
Other series
DES 16
SystemCompact split frame for safe and flexible cable entry with a high protection rating.
Cable Ø 2–35 mm · Also with connector
DES 24
SystemFlexibly splittable frame for safe cable entry with a high degree of protection.
Cable Ø 2–35 mm · Also with connector
DES 24 90
SystemSplit cable entry frame for right-angle (90°) cable entry in cabinets and panels.
Also with connector · 90° entry

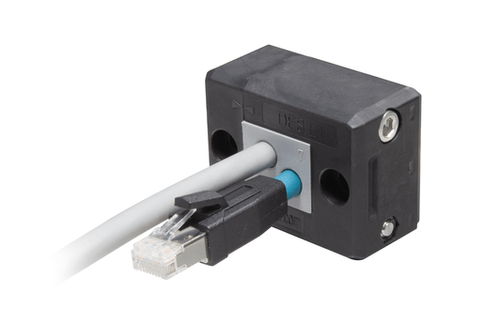

DES L1
