Is de UNIFLEX Advanced Series uit voorraad leverbaar?

Veelgevraagde types en lengtes van de UNIFLEX Advanced Series hebben we op voorraad in Ruurlo. Andere uitvoeringen assembleren we op maat. Geef het type en de lengte door, dan krijg je de levertijd.

Kan ik losse onderdelen voor de UNIFLEX Advanced Series bestellen?

Ja, schakels, stegen, eindbevestigingen en tussenschotten vraag je aan op de pagina Onderdelen en reparatie: op artikelnummer, of door de UNIFLEX Advanced Series en het onderdeel te kiezen. We controleren per type wat leverbaar is.

Welk type van de UNIFLEX Advanced Series past bij mijn toepassing?

Dat hangt af van de dikste kabel (binnenhoogte), de breedte van het pakket, de buigradius en de rijweg. Binnen deze serie loopt de binnenhoogte van 17.5 tot 80 mm. In de kabelrups-configurator reken je het in een paar minuten uit.

Welke buigradii zijn er?

Afhankelijk van het type tussen 28 en 500 mm. Kies altijd een radius die minstens zo groot is als de minimale buigradius van de gevoeligste kabel in het pakket.

Is de UNIFLEX Advanced Series openklapbaar?

Ja, afhankelijk van het type: niet openklapbaar, binnenkant openklapbaar, buitenkant openklapbaar. Zo kun je kabels ook na de montage nog inleggen of vervangen.

Wat is de maximale rijweg?

Tot 200 meter, afhankelijk van het type, het vulgewicht en of de rups vrijdragend of glijdend wordt opgesteld.

Kan ik de kabelrups compleet met kabels krijgen?

Ja. We leveren de rups montageklaar met kabels en slangen op lengte, getest en met de juiste trekontlasting. Dat scheelt montagetijd en voorkomt fouten.

Zijn CAD-bestanden beschikbaar?

Ja, via de knop CAD-bestanden bovenaan de pagina download je 3D-modellen (STEP) van alle types in deze serie.

Service Parts My Wisman TCall+31 88 002 3500 Everkoop@wisman-techniek.nl

Request a quoteQuote

UNIFLEX Advanced Series cable carrier

Basic Line · Plastic · Open

A light, quiet all-rounder that stands out for its versatility. Thanks to its balanced performance and wide range of uses, it is ideal for a broad range of applications, from everyday use to specialised tasks.

Inner height: 17,5–80 mm
Inner width: 15–600 mm
Bending radius: 28–500 mm
Travel length: up to 200 m
Pitch: 25–99,5 mm

Configure in the cable carrier configurator View 7 types

Datasheet (PDF)

Black cable carrier with opening links and yellow interior dividers

Types

7 types in the UNIFLEX Advanced Series

Click a type for all dimensions, performance and options. Every type can be assembled to size, complete with cables.

Type	Inner height	Inner width	Pitch	Bending radii	Max. cable Ø	Travel length, gliding	Version

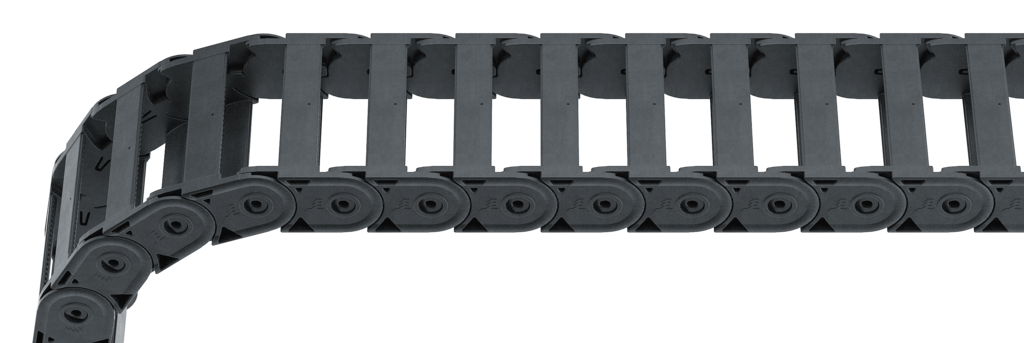

UA1250	Inner height17.5 mm	Inner width30–50 mm	Pitch25 mm	Bending radii28–100 mm· 6	Max. cable Ø14 mm	Travel length, gliding60 m	VersionOpen
UA1320	Inner height20 mm	Inner width15–65 mm	Pitch32 mm	Bending radii28–125 mm· 6	Max. cable Ø16 mm	Travel length, gliding80 m	VersionOpen
UA1455	Inner height26 mm	Inner width25–130 mm	Pitch45.5 mm	Bending radii52–200 mm· 7	Max. cable Ø20.5 mm	Travel length, gliding120 m	VersionOpen
UA1555	Inner height38 mm	Inner width50–150 mm	Pitch55.5 mm	Bending radii63–200 mm· 6	Max. cable Ø30 mm	Travel length, gliding125 m	VersionOpen
UA1665	Inner height44 mm	Inner width50–250 mm	Pitch66.5 mm	Bending radii75–300 mm· 7	Max. cable Ø35 mm	Travel length, gliding150 m	VersionOpen
UA1775	Inner height56 mm	Inner width100–400 mm	Pitch77.5 mm	Bending radii90–340 mm· 8	Max. cable Ø44 mm	Travel length, gliding300 m	VersionOpen
UA1995	Inner height80 mm	Inner width85–250 mm	Pitch99.5 mm	Bending radii150–500 mm· 7	Max. cable Ø65 mm	Travel length, gliding200 m	VersionOpen

About the series

About the UNIFLEX Advanced Series

The UNIFLEX Advanced is the lightweight, quiet all-rounder from the Basic Line. It is an open plastic cable carrier that is easy to install and suits many industrial environments: from automation and robot installations and CNC machines to medical equipment, handling technology and laboratory and measuring applications.

Lightweight
Quiet operation
Widely applicable
Easy to fit
Silent operation
Suitable for a wide range of industrial environments

Widely used in

Automation and robot installationsCNC and machining machinesMedical equipmentTransport and handling technologyLaboratory and measuring applications

Types: The UNIFLEX Advanced comes in 7 types: UA1250, UA1320, UA1455, UA1555, UA1665, UA1775, UA1995.
Sizes: The inner height ranges from 17.5 to 80 mm, the inner width from 15 to 600 mm. All types are available in fixed inner widths.
Bending radius: The bending radius ranges from 28 to 500 mm.
Pitch: The pitch is 25 to 99.5 mm.
Cables: The largest type takes cables up to 65 mm in diameter.
Travel length: The travel length is up to 200 m, depending on type, additional load and installation.
Open: Depending on the type, the links can be opened on the inside and outside, or cannot be opened.
Environment: According to the type data, the series is suitable for indoor and outdoor use, in clean and contaminated environments.

Wisman Techniek in Ruurlo is the exclusive dealer of Tsubaki Kabelschlepp in the Netherlands. Popular UNIFLEX Advanced types are in stock; we assemble other versions to order, cut to length and, if required, complete with cables and hoses.

the cable carrier configurator · free of charge

The right type in 3 minutes

01Fill in cables and hoses
02Travel length and speed
03Specialist checks

Start the cable carrier configurator

No account needed

Replace

Are you replacing an existing carrier?

Send a photo of the carrier or the type plate. We will find the right type and the parts to go with it.

Parts

Parts or repair

Links, crossbars and end brackets for the UNIFLEX Advanced Series. From stock or ordered quickly.

Find parts

In practice

UNIFLEX Advanced Series in practice

All projects

The beach pavilion on Texel with the sliding glass roof

Featured project

Cable carrier for a sliding glass roof at a beach pavilion on Texel

For the sliding glass roof of a beach pavilion on Texel, we advised VEM Installatie Techniek to use plastic cable carriers from the UNIFLEX series: lightweight, quiet and resistant to salt and sand.

Customer: VEM Installatie Techniek
Location: Texel
Sector: Construction and installation
Solution: Cable carriers
Environment: Outdoors by the sea, salt, sand and wind

Read the project
